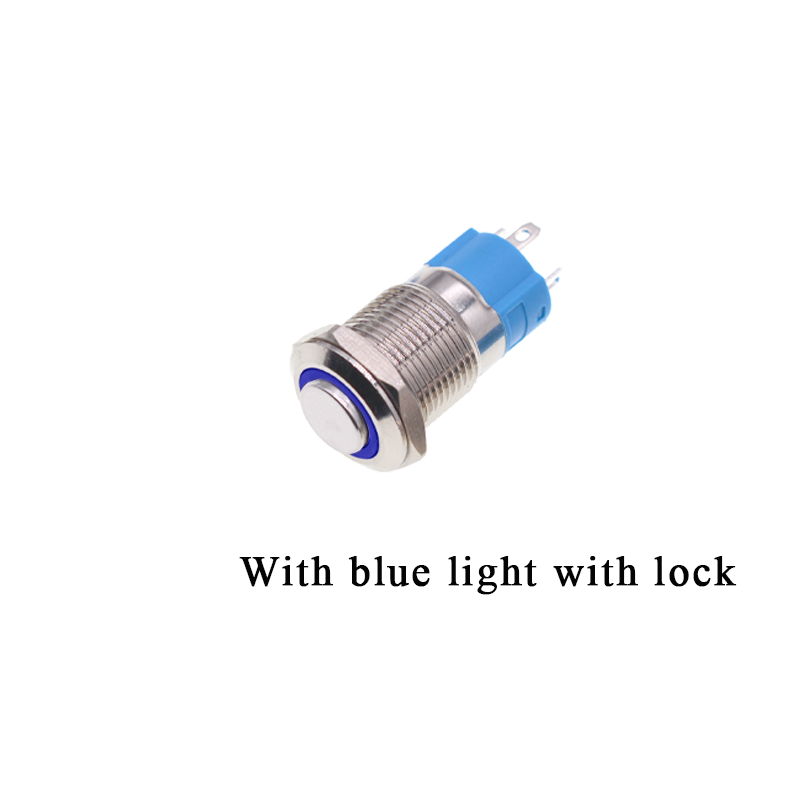

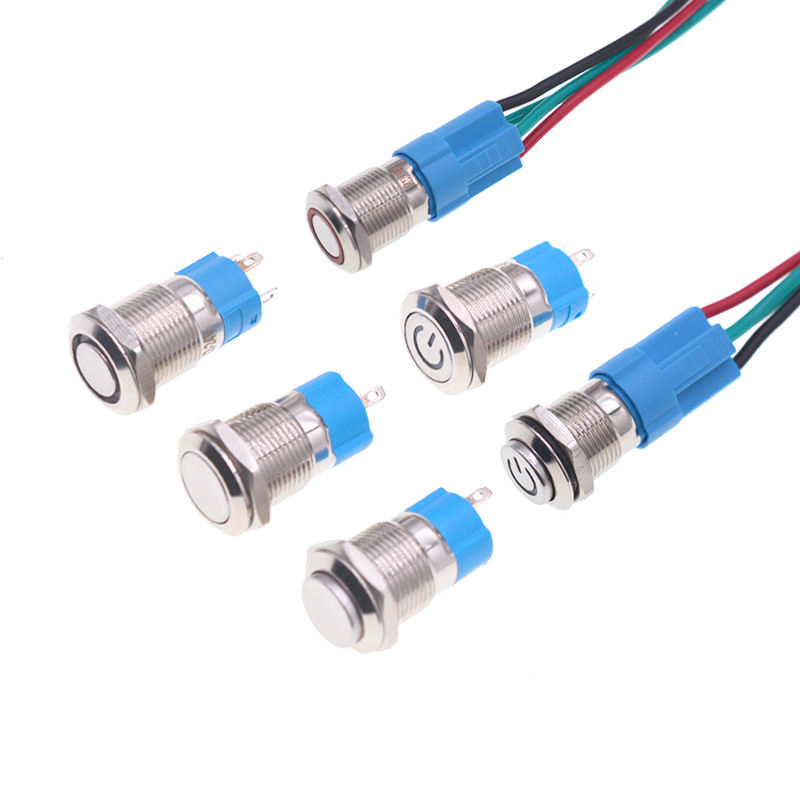

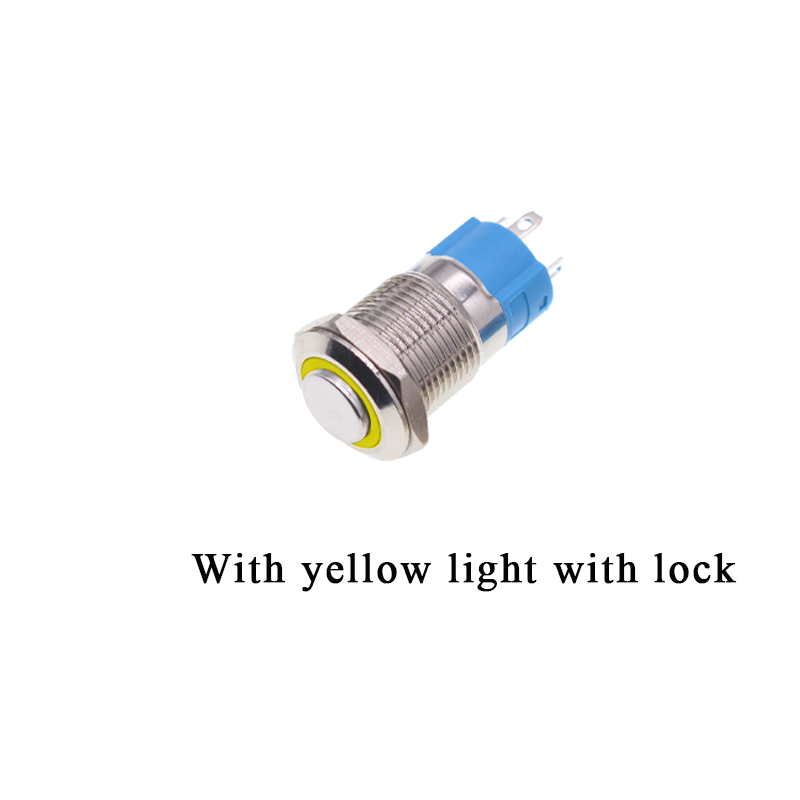

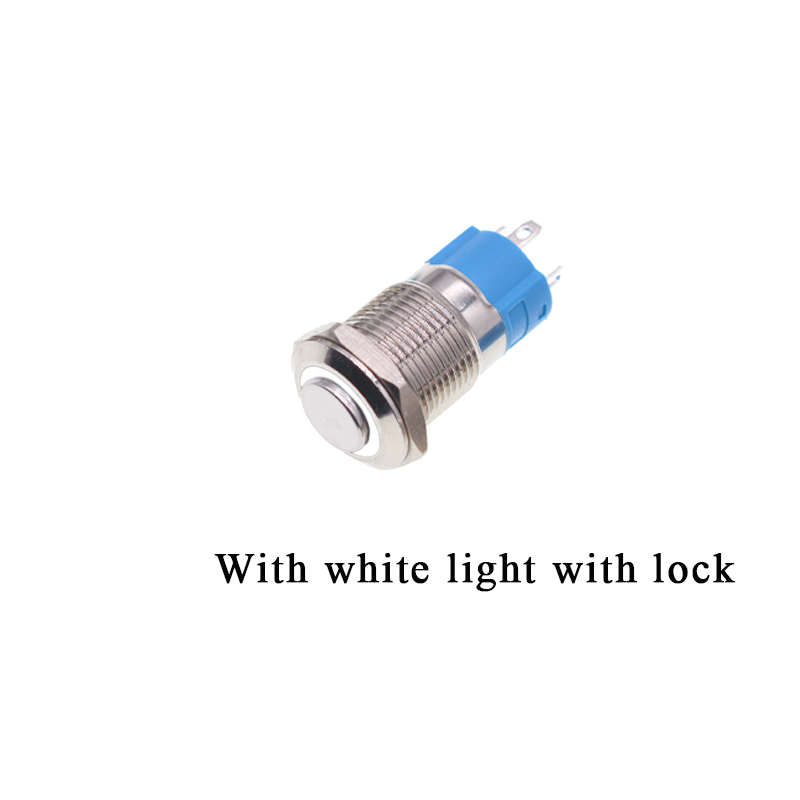

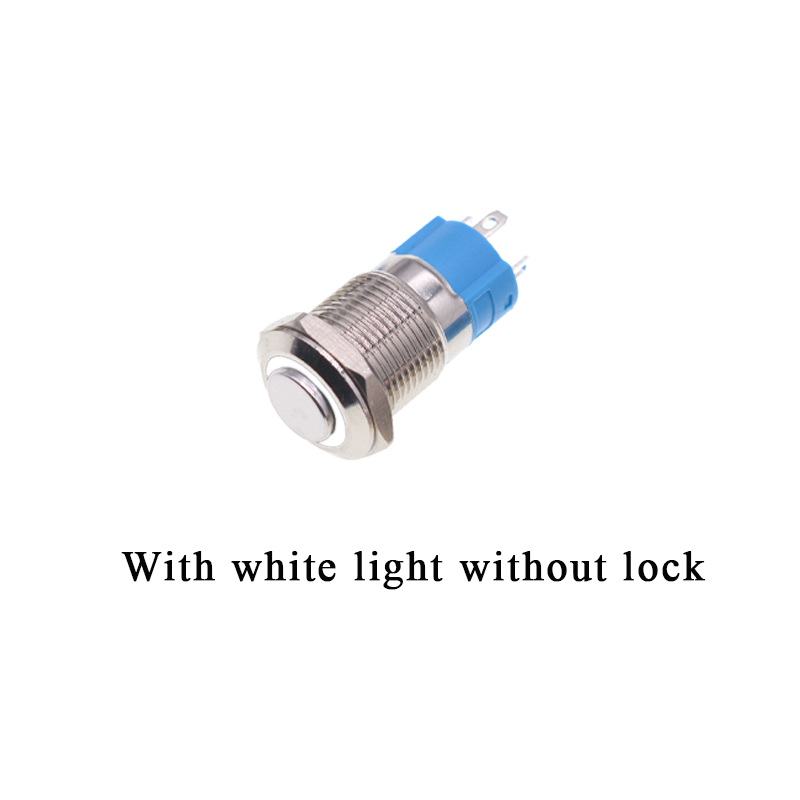

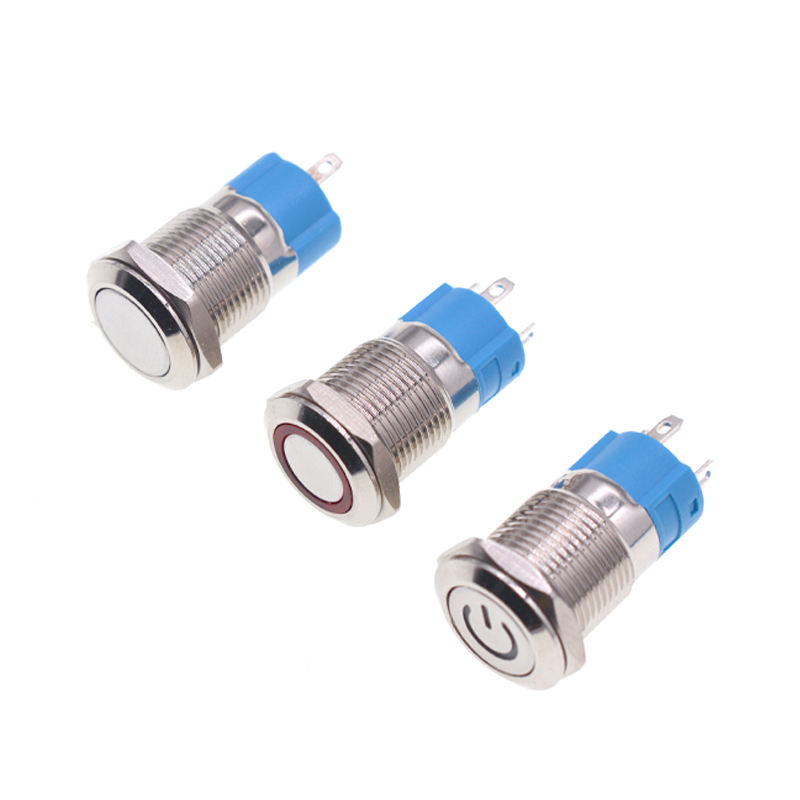

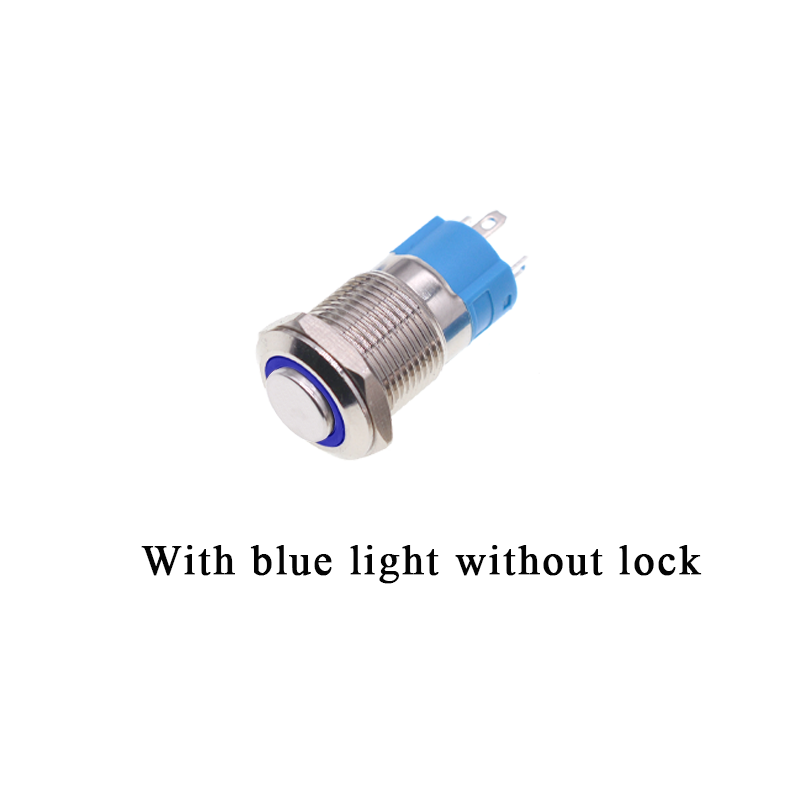

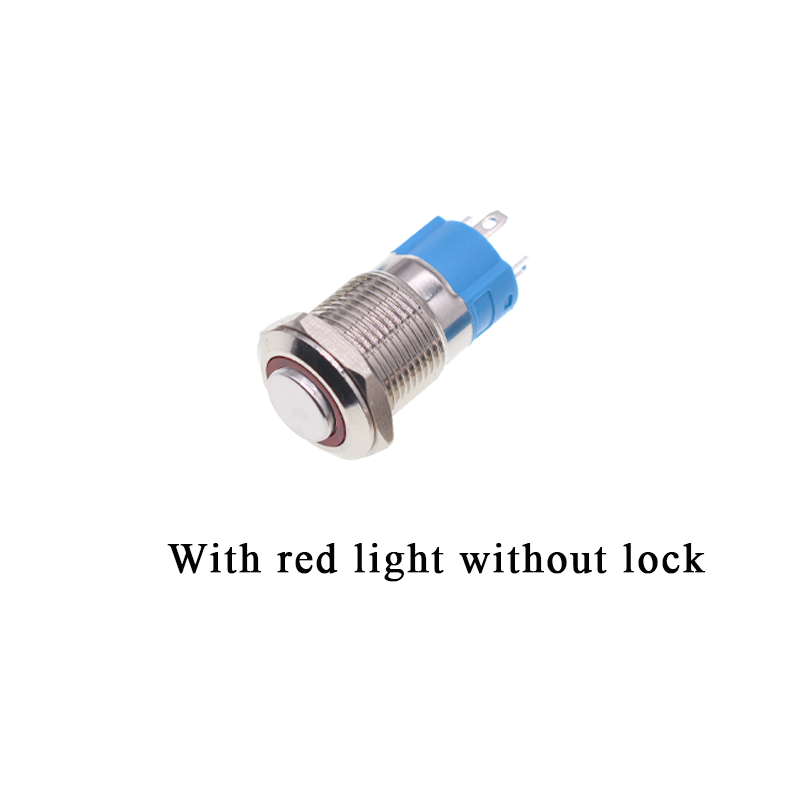

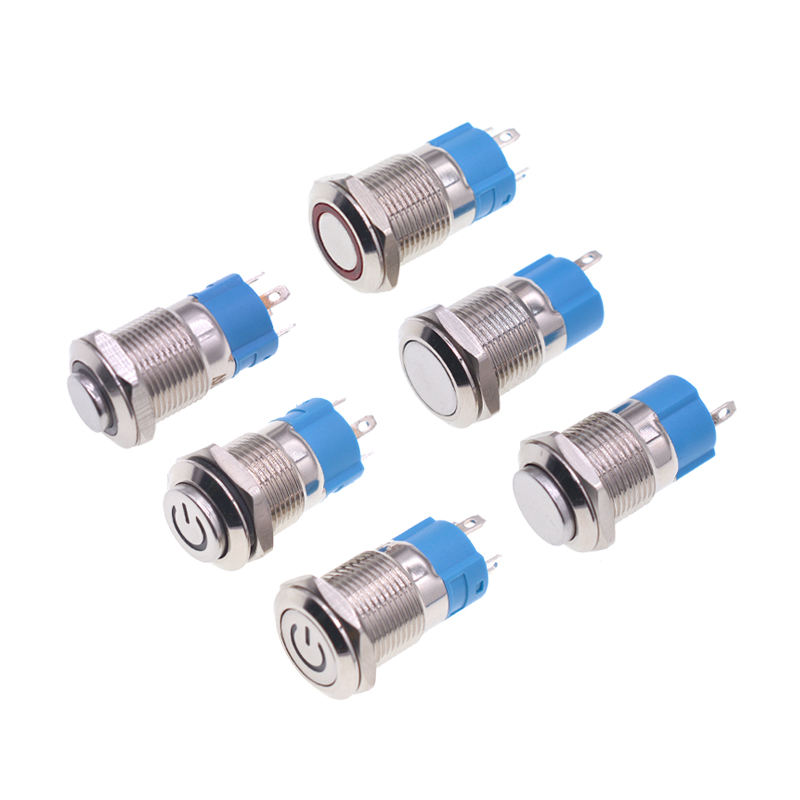

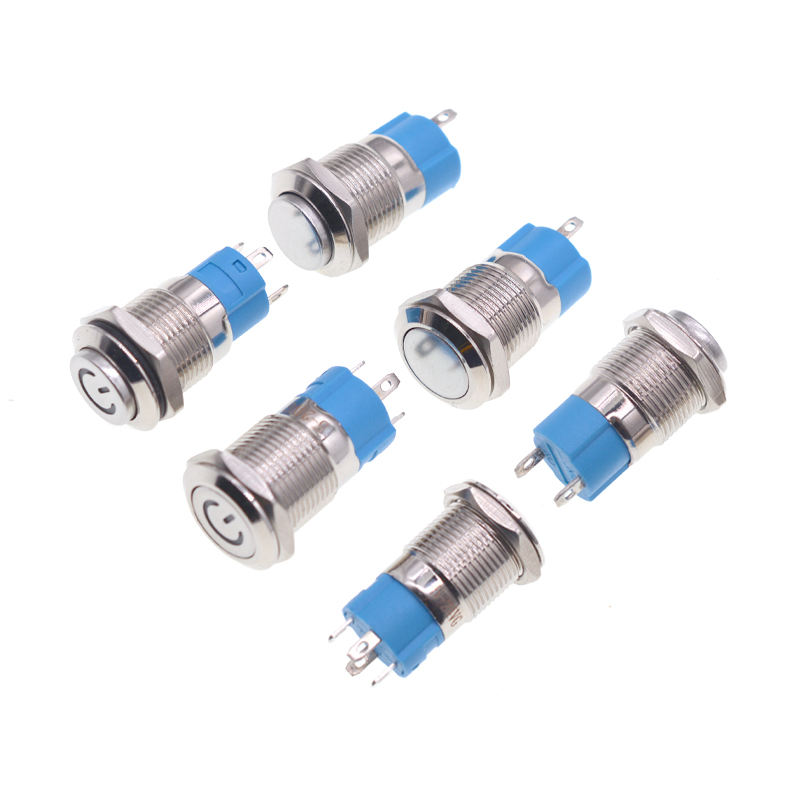

12MM High Head Metal Push Button Switch with Ring Light, Waterproof Self-Reset/Self-Lock Power Switch for Industrial Equipment
12MM High Head Metal Push Button Switch with Ring Light, Waterproof Self-Reset/Self-Lock Power Switch for Industrial Equipment
12MM High Head Metal Push Button Switch with Ring Light, Waterproof Self-Reset/Self-Lock Power Switch for Industrial Equipment
12MM High Head Metal Push Button Switch with Ring Light, Waterproof Self-Reset/Self-Lock Power Switch for Industrial Equipment
12MM High Head Metal Push Button Switch with Ring Light, Waterproof Self-Reset/Self-Lock Power Switch for Industrial Equipment
12MM High Head Metal Push Button Switch with Ring Light, Waterproof Self-Reset/Self-Lock Power Switch for Industrial Equipment
12MM High Head Metal Push Button Switch with Ring Light, Waterproof Self-Reset/Self-Lock Power Switch for Industrial Equipment
12MM High Head Metal Push Button Switch with Ring Light, Waterproof Self-Reset/Self-Lock Power Switch for Industrial Equipment
12MM High Head Metal Push Button Switch with Ring Light, Waterproof Self-Reset/Self-Lock Power Switch for Industrial Equipment
12MM High Head Metal Push Button Switch with Ring Light, Waterproof Self-Reset/Self-Lock Power Switch for Industrial Equipment
12MM High Head Metal Push Button Switch with Ring Light, Waterproof Self-Reset/Self-Lock Power Switch for Industrial Equipment
12MM High Head Metal Push Button Switch with Ring Light, Waterproof Self-Reset/Self-Lock Power Switch for Industrial Equipment
12MM High Head Metal Push Button Switch with Ring Light, Waterproof Self-Reset/Self-Lock Power Switch for Industrial Equipment
12MM High Head Metal Push Button Switch with Ring Light, Waterproof Self-Reset/Self-Lock Power Switch for Industrial Equipment
12MM High Head Metal Push Button Switch with Ring Light, Waterproof Self-Reset/Self-Lock Power Switch for Industrial Equipment

12MM High Head Metal Push Button Switch with Ring Light, Waterproof Self-Reset/Self-Lock Power Switch for Industrial Equipment

🚀 Source the Wow. Sell the Fun. Scale Your Business.

Tired of the same old suppliers? We get it. Whether you're a neighborhood shop, a creative YouTuber, or a business sourcing unique promotional items, you need products that tell a story, spark conversation, and fly off your shelves.

Why Partner With Us?

✓ True Small-Order Wholesale: Mix & match categories. No massive minimums.

✓ Competitive Pricing: Factory-direct deals, so you keep your margins healthy.

✓ Lightning-Fast Sourcing: We constantly hunt for the next big thing so you don't have to.

✓ Customization Options: From custom packaging to laser-engraved logos, build your brand with us.

⚠️ Don't just stock products, stock conversations. We're your partner in profit, supplying the unique goods that bring customers back.

🌟 Small Orders, Big Impact. Let's Grow Together.

🏭 Wholesale Inquiry Business

Interested in our products for your business? Fill out the form below and we'll get back to you with wholesale pricing and options.

Product Description

Max. Current:   3 A
Max. Voltage:   250 V
Switch Combination:   1NO1NC, 1NO
Place of Origin:   Guangdong, China
Model Number:   YZ-12MM-GTR
Brand Name:   YZ
IP level:   IP66
LED:   Yes
Whether The Smart:   No
Switch Voltage:   1.5V-250V AC/DC
Switch Current::   3mA-3A
LED Voltage::   3V-220V AC/DC
LED Current::   3mA-20mA
Light Color::   Red, Green, Yellow, Blue, White (customizable)
Operation Type::   Self-reset/Lock
Operating Temperature::   -30°C to +80°C
Torque::   5-14Nm
Release Force::   2.5-3N
Base Material::   PA66/Black nylon/Transparent nylon/PC
Selling Units:   Single item
Single package size:   1.4X1.4X2.6 cm
Single gross weight:   0.050 kg
Special Key Feature:   snap button, red buttons, metal button, mixed buttons, wooden button, bulk buttons, jeans button, craft buttons, 10mm buttons, abs button, horn button, gold buttons, brass buttons, belly button, resin button
item:   value
Protection Level:   IP66
Body Material::   H59 brass/Nickel plated SUS304 stainless steel/Aluminum oxide
Switch Housing::   Alloy box
Mounting Hole Size::   12mm diameter, Panel thickness 30mm
Waterproof Rating::   IP66
Impact Resistance::   IK10
LED Lifespan::   40,000 hours
Electrical Life::   0.2A/250V AC 200,000 cycles; 3A/250V AC 50,000 cycles
Mechanical Life::   250,000 cycles per switch; 500,000 cycles per lock
Certifications::   CE, ROHS

🍪
