Product Description
Brand Name: original
Model Number: JBLA137
Type: switch push button
D/C: 12v
Place of Origin: Fujian, China
Application: PCB
Supplier Type: Original Manufacturer
Media Available: EDA/CAD Models
Brand: Tactile switch
Features: tht
Mounting Feature: Back or Front of Panel
Size / Dimension: 4.0*6.1 mm
Color: black
Material: Not Applicable
Operating Temperature: -25~70℃
Mounting Type: wave soldering
Switch Function: SPST
Current Rating (Amps): 0.05A
Voltage Rating - AC: standard
Voltage Rating - DC: DC12V
Voltage: 12 V
Packaging: NO
Voltage Rating: 12v
Illumination Voltage (Nominal): Not
Voltage - Switching AC: NO
Voltage - Switching DC: 12V
Power - Rated: standard
LED Color: Not Applicable
Rated Voltage: 12v
Current - Switching: 0.05A
Selling Units: Single item
Single package size: 20X2X2 cm
Single gross weight: 0.002 kg
Special Key Feature: usb push button, wireless push button, latching push button, pneumatic push button, mechanical push button, emergency push button, waterproof push button, metal push button, start stop push button, arcade push buttons, bluetooth push button, rubber push button, micro push button, schneider push button, ip67 push button
Electrical lifespan: 100,000 cycles
Shell material: PPA
Pin material: Brass plated with silver
Connection method: Insertion type
Mechanical life: 100,000 times Contact
Switch type: Self-resetting type
Height: 9.6mm
Rated curren: 0.05A
Pin quantity: 4
Contact resistance: ≤ 100Ω
Insulation resistance: ≥100MΩ
Measurement: 0.3mm ± 0.15mm

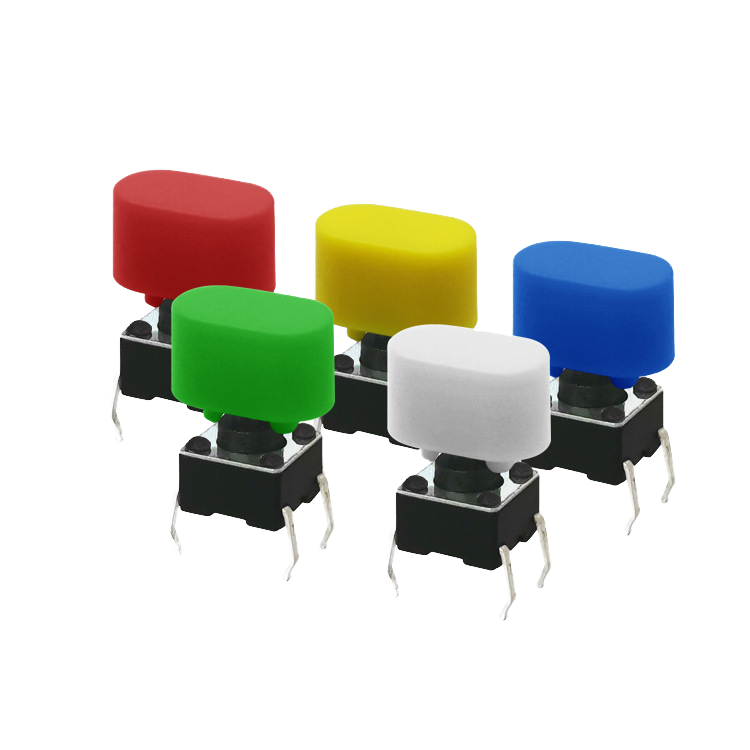

Specification: red
Specification: yello
Specification: greed
Specification: blue
Specification: white
Specification: black
