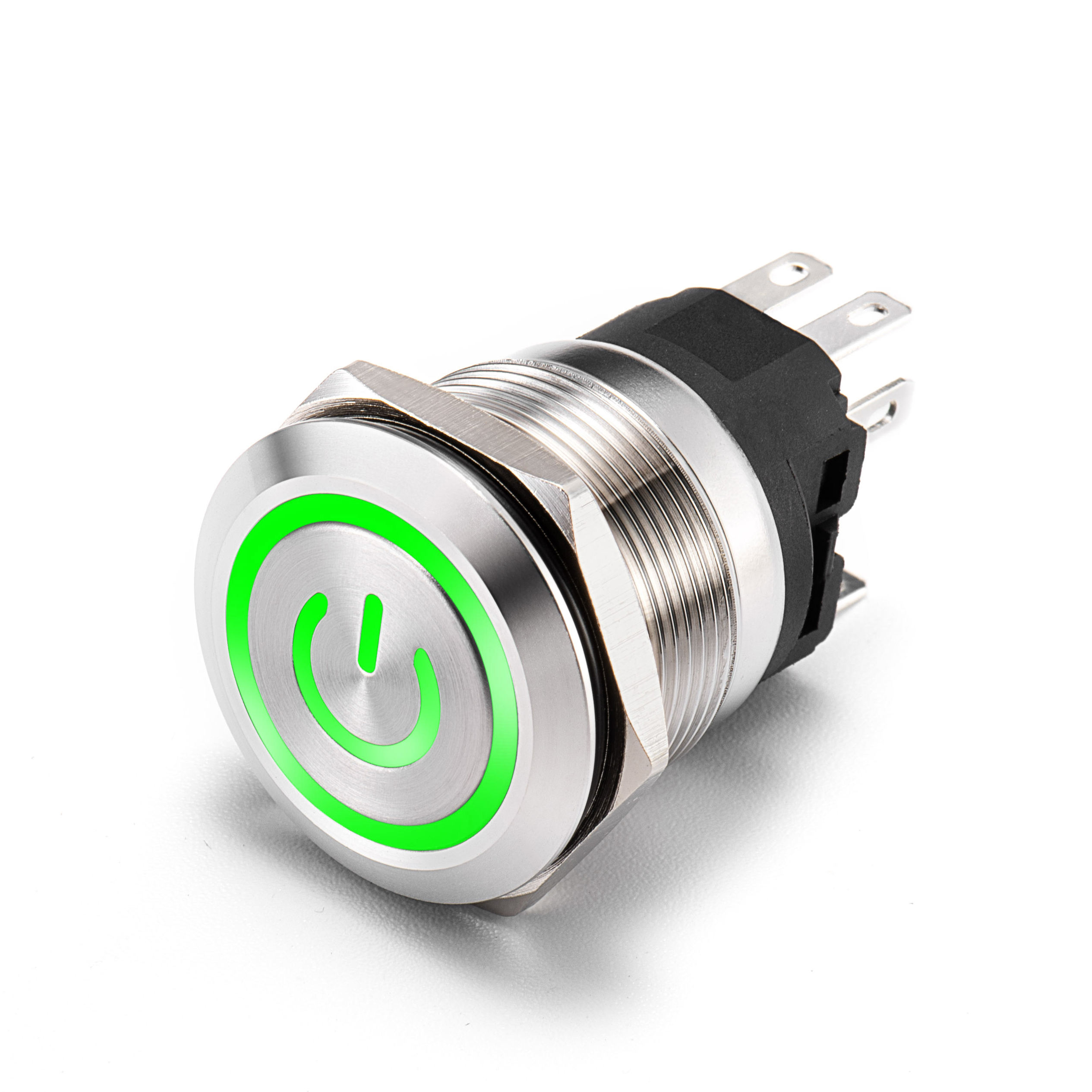

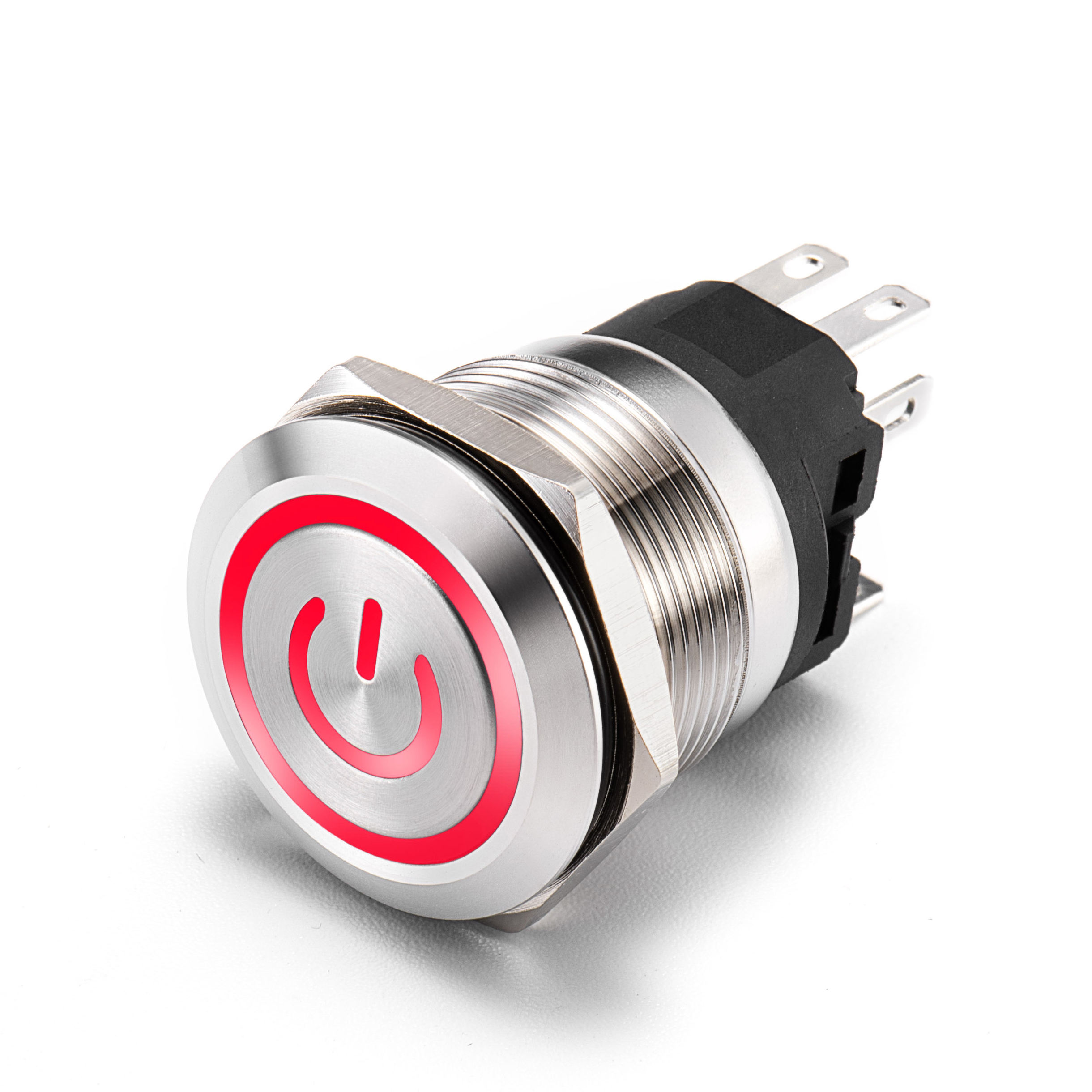

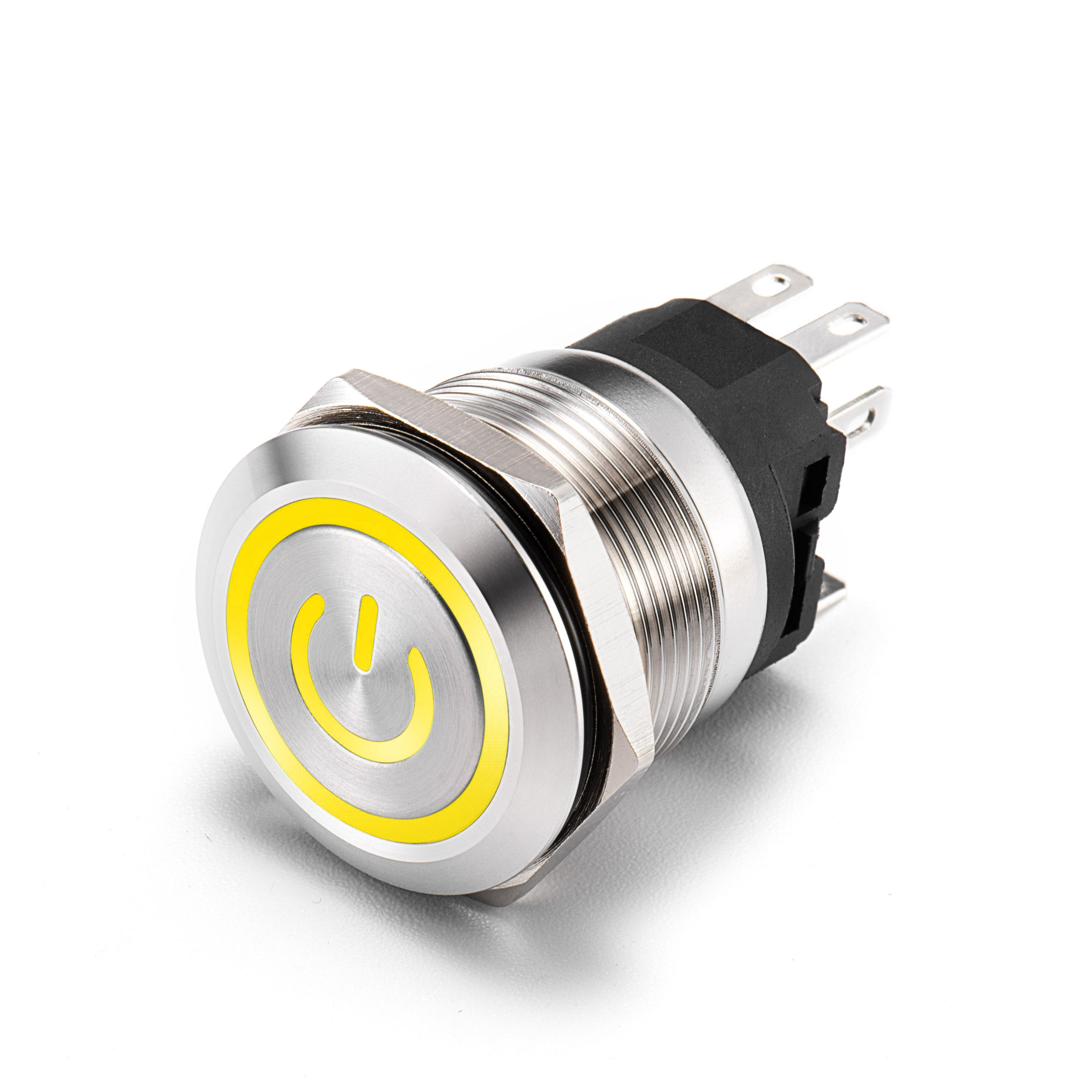

Product Description
Max. Current: 1 A, 2 A, 3 A, 5 A, 10A, 15 A
Max. Voltage: 5 V, 12 V, 24 V, 36 V, 50 V, 100 V, 110 V, 125 V, 220 V
Mechanical Life: 1000000 Times
Switch Combination: 1NO1NC
Place of Origin: China
Model Number: push button switch
Brand Name: push button switch
Application: Automotive, Electric, Home Appliance, Industrial Control, Latching, Marine Equipment, Medical Equipment
Head Type: Dome Head, Flat Head
IP level: IP11, IP65
LED: No
Material: Aluminum, Brass Plated With Silver, Stainless Steel
Structure: Mechanical
Terminal Type: Pin Terminal, Screw Terminal
Whether The Smart: No
Selling Units: Single item
Single package size: 10X7X4.5 cm
Single gross weight: 0.100 kg
Illuminated Options: Ring-Illuminated
Terminal: Solder lug (2.8X0.5)/ Screw
Contact Resistance: ≤50mΩ
Insulation Resistance: ≥1000mΩ
Dielectric Strengh: 2000VAC
Operation Temp.: -20°C ~ +55°C
Electrical Life: 100,000cycles
Torque: 5 ~ 14Nm
Protection: IP67/ IK09
Rated Voltage: 12 V: 12 V
Rated Voltage: 12 V: 24 V
Size: 22 mm(0.87in)
Size: 22 mm: 22 mm(0.87in)
