Product Description
Max. Current: 50 mA
Max. Voltage: 12 V
Mechanical Life: 80000 Times
Switch Combination: 1NO
Place of Origin: Zhejiang, China
Model Number: HBGQ12SF\16SF\19SF-10W/J/S
Brand Name: HBAN
Application: Industrial Control, Electric, Automotive, Medical Equipment, Home Appliance, Renewable Energy, Automotive Electronics, Rail Transit, Smart Home Control, Marine Equipment
Head Type: Round Head
Illuminated Type: Ring Illuminated
IP level: IP67
LED: No
Material: Stainless Steel
Structure: Mechanical
Terminal Type: Pin Terminal
Whether The Smart: No
Operation Type: Momentary
Working Environment Temperature: -25℃~+65℃
Manufacturer: Yes
Selling Units: Single item
Single package size: 21X13X6 cm
Single gross weight: 0.055 kg
Special Key Feature: button switch, emergency push button switch, led push button switch, on off switch, micro push button switch, latching push button switch, selector switch, 12mm push button switch, foot switch, remote push button switch, 12v push button switch, small push button switch, push switch, push button micro switch, push pull switch
UL Push button switch: Indicator light Emergency stop switch
Key switch: rotary switch Emergency stop box
Heavy load push button: Short stroke button switch Mushroom push button
Series Number: HBGQ(This product is marked in green)
Mounting Hole Size: 12: Ø12mm 16: Ø16mm 19: Ø19mm 22: Ø22mm
25: Ø25mm 30: Ø30mm 35: Ø35mm

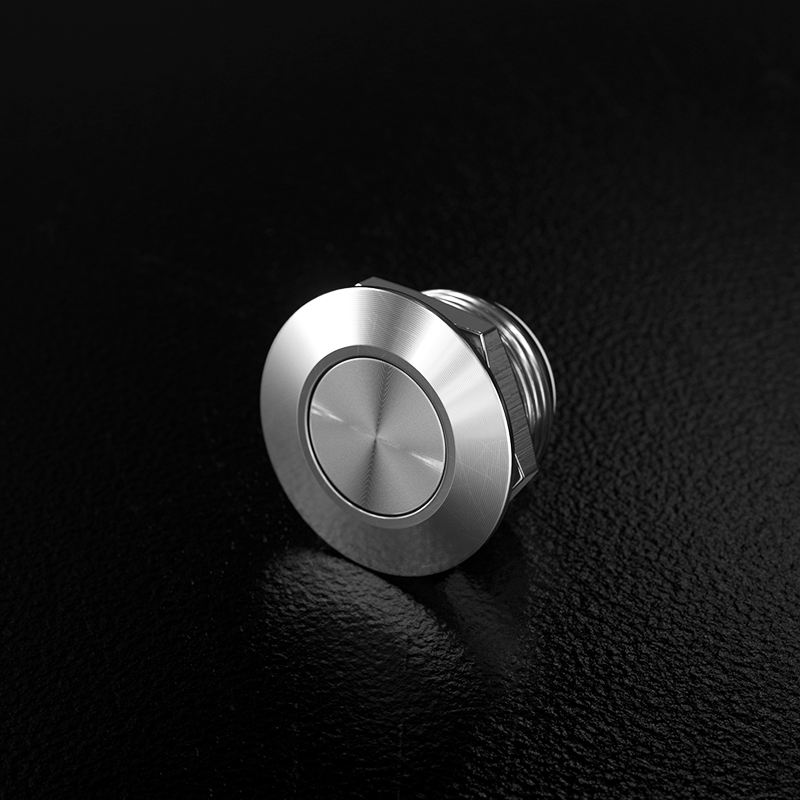

The Front Shape: F: Flat round head
H: High flat round head
C: Concave head
P: Hyperplane head
Contact Configuration: 10: 1NO
11: 1NO1NC
Operation Stroke: W: Ultra-short stroke
Lamp Type: No letters: Without LED
E: Ring LED
ET: Ring and power symbol LED

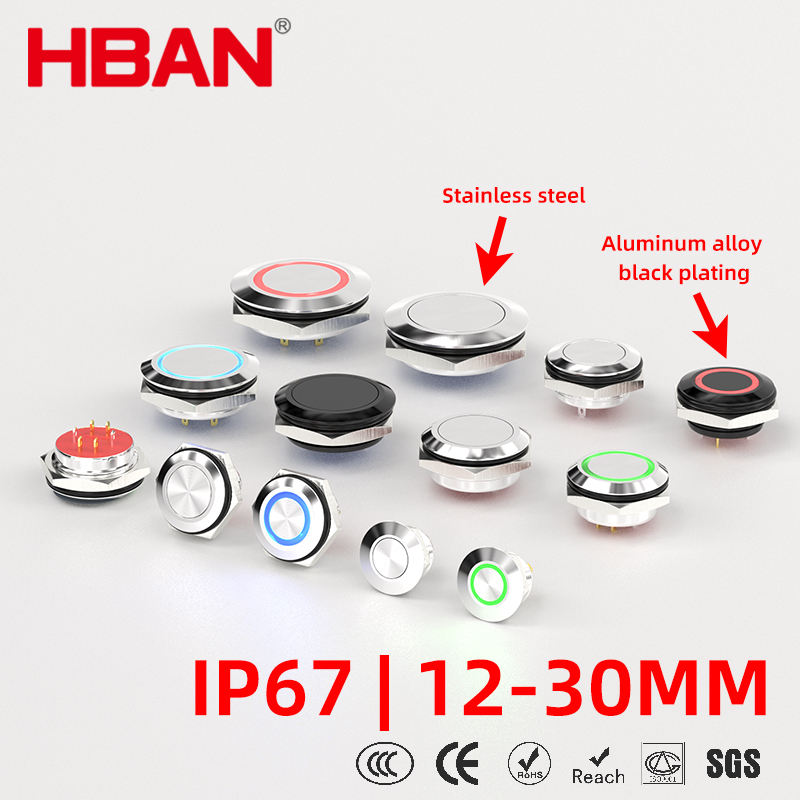

Shell Material: N: Nickel-plated brass
S: Stainless steel
T: Aluminum Anti-rotation customize:
None: No Anti-rotation customize
1: single Anti-rotation
2: both side Anti-rotation
Shell Custom Color: No letters: Shell natural color
R: Red G: Green Y: Yellow O: Orange B: Blue H: Black
AC/DC LED Voltage: 6V/12V/24V/36V; 110V/220V Other voltages can be customized
LED Color: R: Red G: Green Y: Yellow O: Orange B: Blue W: White
Rated Voltage: 12 V: 12 V

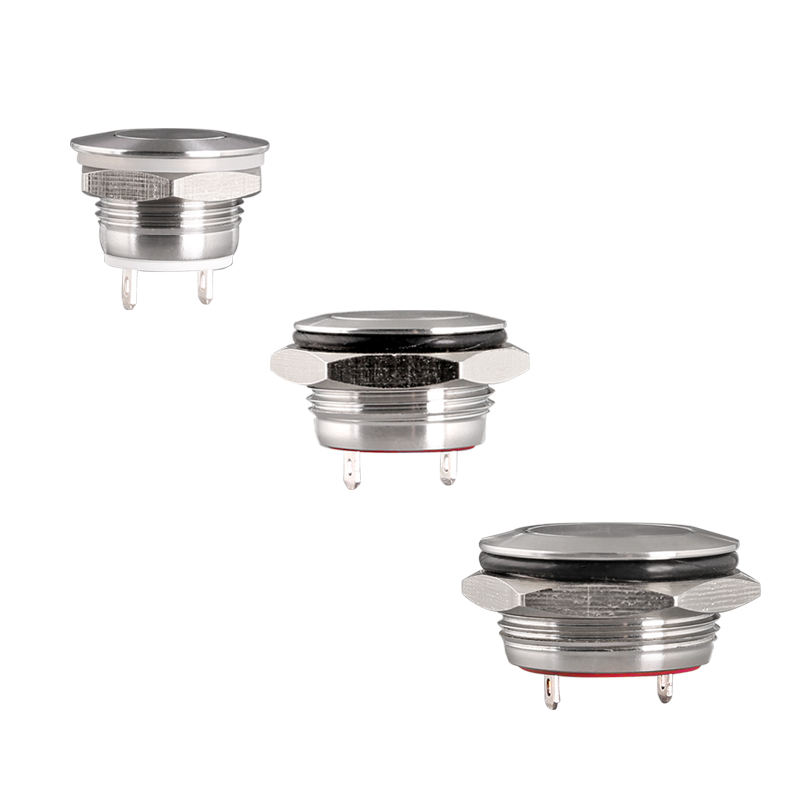

Size: 12mm(0.47in)
Size: 16 mm(0.63in)
Size: 19 mm(0.75in)
