Product Description
Max. Current: 1 A
Max. Voltage: 220 V
Switch Combination: 1NO
Place of Origin: Zhejiang, China
Model Number: HSUS22F-10
Brand Name: HUSA
Application: Electric, Home Appliance, Industrial Control
Head Type: Flat Head
Illuminated Type: Ring Illuminated
IP level: IP65
LED: Other
Material: Stainless Steel
Structure: Mechanical
Terminal Type: Plug Terminal
Whether The Smart: No

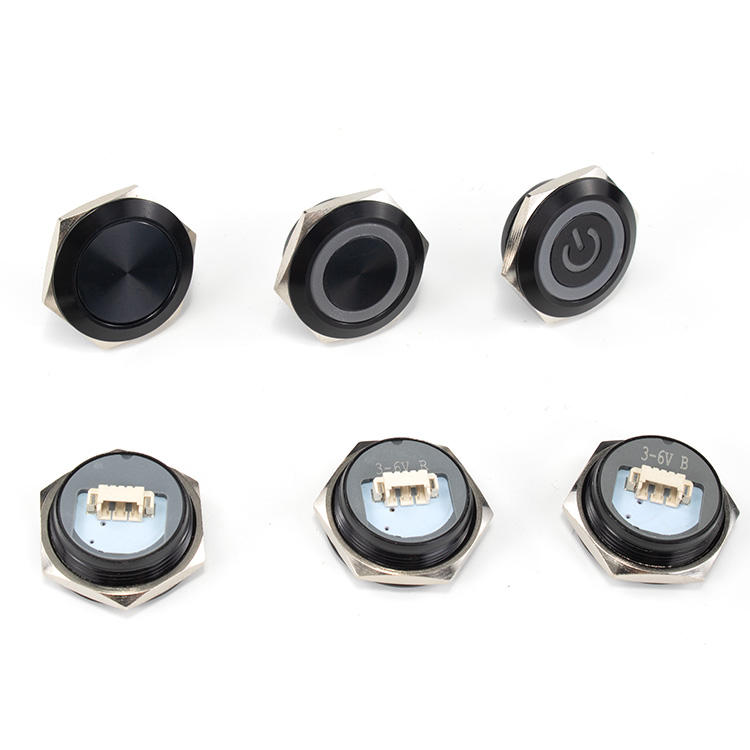

Product name: Pushbutton Switch
Operation type: Momentory
Mounting Hole Size: 22mm Diameter
LED color: Red.Yellow.Green.White.Blue.Orange.RGB
LED Voltage: 3V/6V/12V/24V/36V/110V/220V/others
Product type: ultra short push button switch
Contact type: 1NO
Certification: CCC CE
Selling Units: Single item
Single package size: 10X10X3 cm
Single gross weight: 0.017 kg
Special Key Feature: button switch, emergency push button switch, led push button switch, on off switch, micro push button switch, latching push button switch, selector switch, 12mm push button switch, foot switch, remote push button switch, 12v push button switch, small push button switch, push switch, push button micro switch, push pull switch
Lamp Type: The use of AC/DC universal LED lamp beads
Rated Voltage: 3-6V ≤ 20mA 12-24V ≤ 10mA 110-250V ≤ 2mA 5-48V ≤ 6mA
Life: 40000 hours (Reference)
Power: 0.06W
Items: Demand
Switch Rating: DC 36V 50mA
Contact Configuration: 1NO
Contact Resistance: ≤ 50mΩ
Mechanical Life: ≥ 1000000
Electrical Life: ≥ 500000
Operation Force: ≤ 3 N
Operation Stroke (Distance): ≤ 0.5mm
IP Degre: IP65 IP67 IK05
Operation Temp: -25℃ ~ + 55 ℃
Torque: 5-14 N·m
Panel Thickness: ≤ 5mm
Rated Voltage: 3-6V: 3-6V
Rated Voltage: 3-6V: 12-24V
Rated Voltage: 3-6V: 220V
Size: red led
Size: green led
Size: yellow led
Size: blue led
Size: white led
