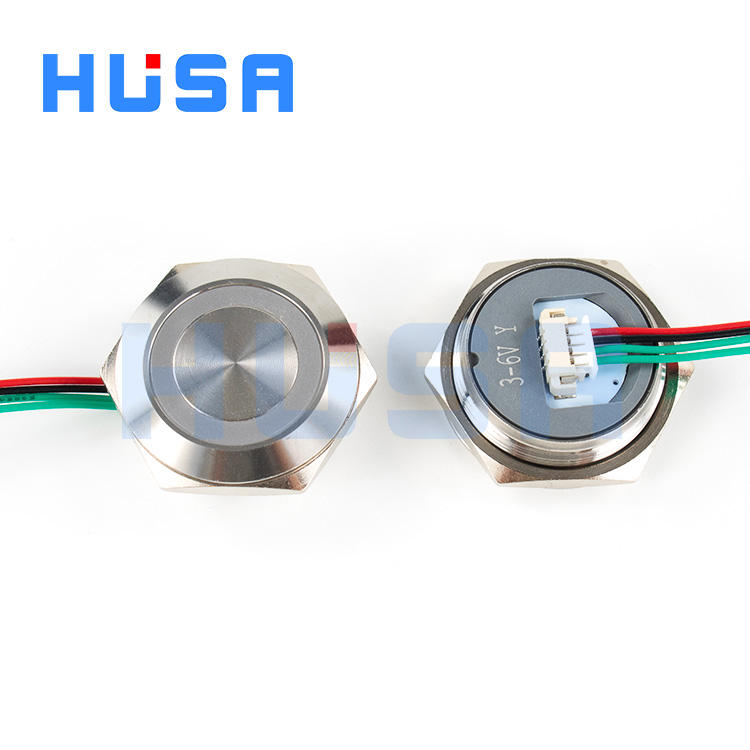

HUSA Ultra Short 25mm Push Button Switches Waterproof Momentary LED Light Control 6V 12V 24V Short Thin Push Button Switches
HUSA Ultra Short 25mm Push Button Switches Waterproof Momentary LED Light Control 6V 12V 24V Short Thin Push Button Switches
HUSA Ultra Short 25mm Push Button Switches Waterproof Momentary LED Light Control 6V 12V 24V Short Thin Push Button Switches
HUSA Ultra Short 25mm Push Button Switches Waterproof Momentary LED Light Control 6V 12V 24V Short Thin Push Button Switches
HUSA Ultra Short 25mm Push Button Switches Waterproof Momentary LED Light Control 6V 12V 24V Short Thin Push Button Switches
HUSA Ultra Short 25mm Push Button Switches Waterproof Momentary LED Light Control 6V 12V 24V Short Thin Push Button Switches
HUSA Ultra Short 25mm Push Button Switches Waterproof Momentary LED Light Control 6V 12V 24V Short Thin Push Button Switches
HUSA Ultra Short 25mm Push Button Switches Waterproof Momentary LED Light Control 6V 12V 24V Short Thin Push Button Switches
HUSA Ultra Short 25mm Push Button Switches Waterproof Momentary LED Light Control 6V 12V 24V Short Thin Push Button Switches
HUSA Ultra Short 25mm Push Button Switches Waterproof Momentary LED Light Control 6V 12V 24V Short Thin Push Button Switches
HUSA Ultra Short 25mm Push Button Switches Waterproof Momentary LED Light Control 6V 12V 24V Short Thin Push Button Switches
HUSA Ultra Short 25mm Push Button Switches Waterproof Momentary LED Light Control 6V 12V 24V Short Thin Push Button Switches
HUSA Ultra Short 25mm Push Button Switches Waterproof Momentary LED Light Control 6V 12V 24V Short Thin Push Button Switches
HUSA Ultra Short 25mm Push Button Switches Waterproof Momentary LED Light Control 6V 12V 24V Short Thin Push Button Switches
HUSA Ultra Short 25mm Push Button Switches Waterproof Momentary LED Light Control 6V 12V 24V Short Thin Push Button Switches

HUSA Ultra Short 25mm Push Button Switches Waterproof Momentary LED Light Control 6V 12V 24V Short Thin Push Button Switches

🚀 Source the Wow. Sell the Fun. Scale Your Business.

Tired of the same old suppliers? We get it. Whether you're a neighborhood shop, a creative YouTuber, or a business sourcing unique promotional items, you need products that tell a story, spark conversation, and fly off your shelves.

Why Partner With Us?

✓ True Small-Order Wholesale: Mix & match categories. No massive minimums.

✓ Competitive Pricing: Factory-direct deals, so you keep your margins healthy.

✓ Lightning-Fast Sourcing: We constantly hunt for the next big thing so you don't have to.

✓ Customization Options: From custom packaging to laser-engraved logos, build your brand with us.

⚠️ Don't just stock products, stock conversations. We're your partner in profit, supplying the unique goods that bring customers back.

🌟 Small Orders, Big Impact. Let's Grow Together.

🏭 Wholesale Inquiry Business

Interested in our products for your business? Fill out the form below and we'll get back to you with wholesale pricing and options.

Product Description

Max. Current:   1 A
Max. Voltage:   220 V
Mechanical Life:   2000000 Times
Switch Combination:   1NO, 1NO1NC
Place of Origin:   Zhejiang, China

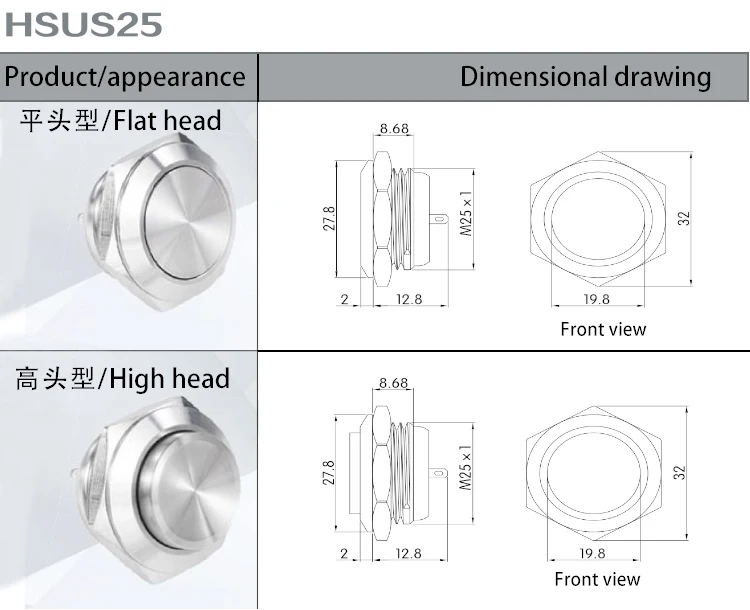

Model Number:   HSUS25F-10E/L/S
Brand Name:   HUSA
Application:   Electric, Industrial Control
Head Type:   Flat Head

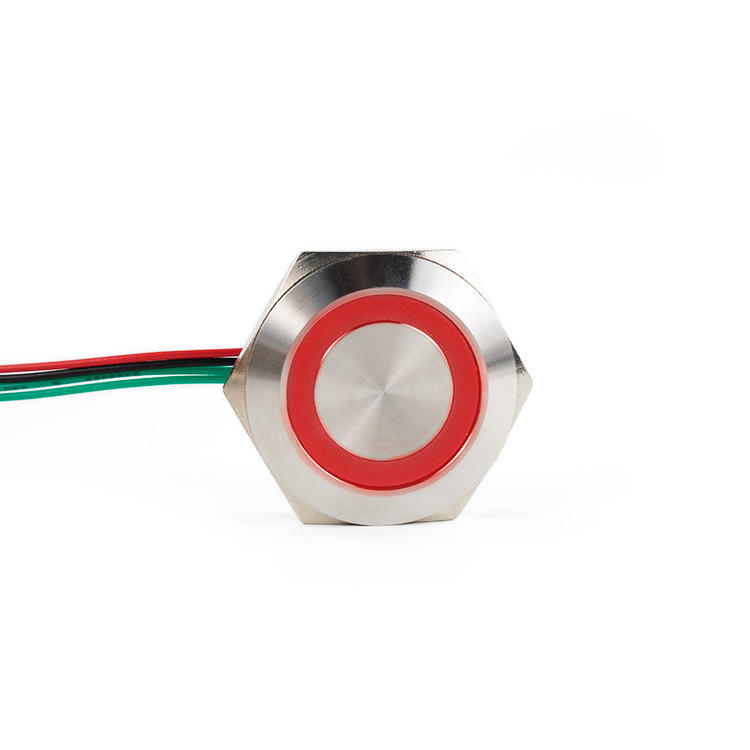

Illuminated Type:   Ring Illuminated
IP level:   IP65
LED:   Yes
Material:   Stainless Steel
Structure:   Mechanical
Terminal Type:   Plug Terminal
Whether The Smart:   No
Product name:   Pushbutton Switch
Operation type:   Momentory
Mounting Hole Size:   25mm Diameter

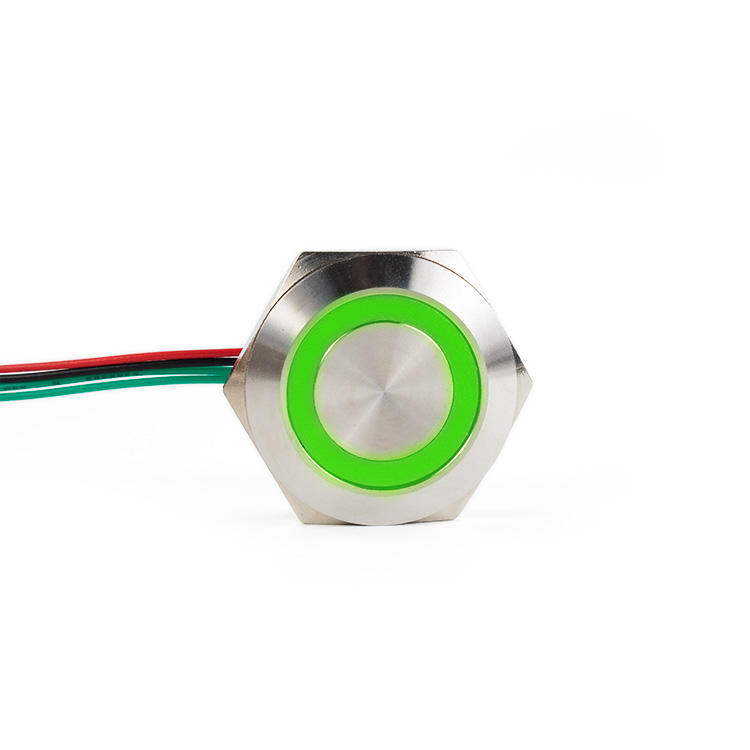

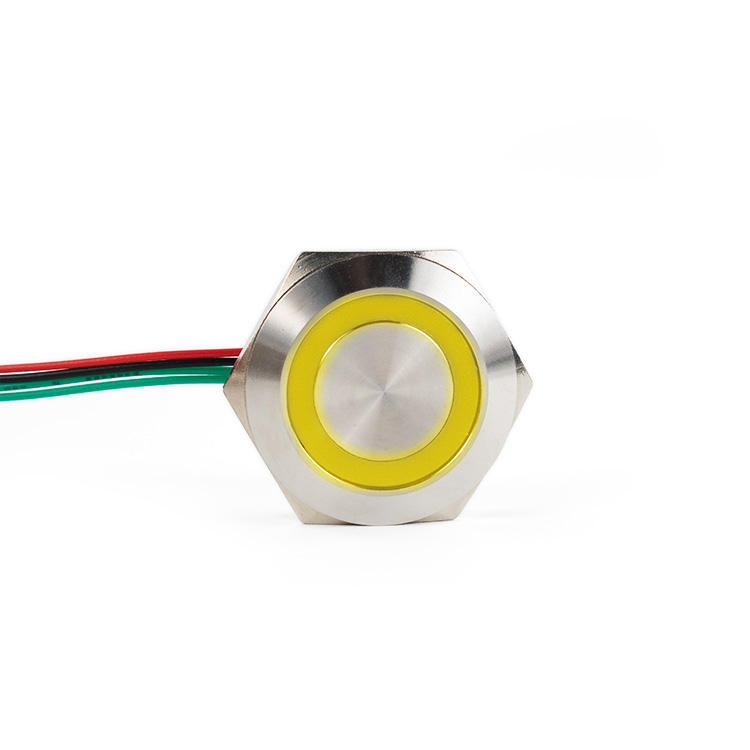

LED color:   Red.Yellow.Green.White.Blue.Orange.RGB
LED Voltage:   3V/6V/12V/24V/36V/110V/220V/others
Product type:   ultra short push button switch
Contact type:   1NO
Certification:   CCC CE
Selling Units:   Single item
Single package size:   15X15X6 cm
Single gross weight:   0.100 kg
Special Key Feature:   g4 led, r7s led, gx53 led, g23 led, e11 led, g9 led, 5w led, mini led, r7 led, mcob led, e27 led, rohs led, r80 led, rs7 led, e10 led
Lamp Type:   The use of AC/DC universal LED lamp beads
Rated Voltage:   3-6V ≤ 20mA   12-24V ≤ 10mA   110-250V ≤ 2mA   5-48V ≤ 6mA
Life:   40000 hours (Reference)
Power:   0.06W
Items:   Demand
Switch Rating:   DC 36V 50mA
Contact Configuration:   1NO
Contact Resistance:   ≤ 50mΩ
Electrical  Life:   ≥ 500000
Operation Force:   ≤ 3 N
Operation Stroke (Distance):   ≤ 0.5mm
IP Degre:   IP65   IP67  IK05
Operation Temp:   -25℃ ~ + 55 ℃
Torque:   5-14 N·m
Panel Thickness:   ≤ 5mm

Rated Voltage: 3-6v: 3-6v

Rated Voltage: 3-6v: 12-24v

Rated Voltage: 3-6v: 220V

Size: 25MM with 15cm wire

Size: 25MM with 15cm wire: 25MM with 15cm wire

🍪
