Product Description
Material: ABS
Power: 5A
Sensing Range: 8M
Rated Voltage: DC5-24V
Place of Origin: Guangdong, China
Model Number: NS001
Brand Name: NODAV
Type: Motion sensor switch
Whether The Smart: Yes
product type: Patented product

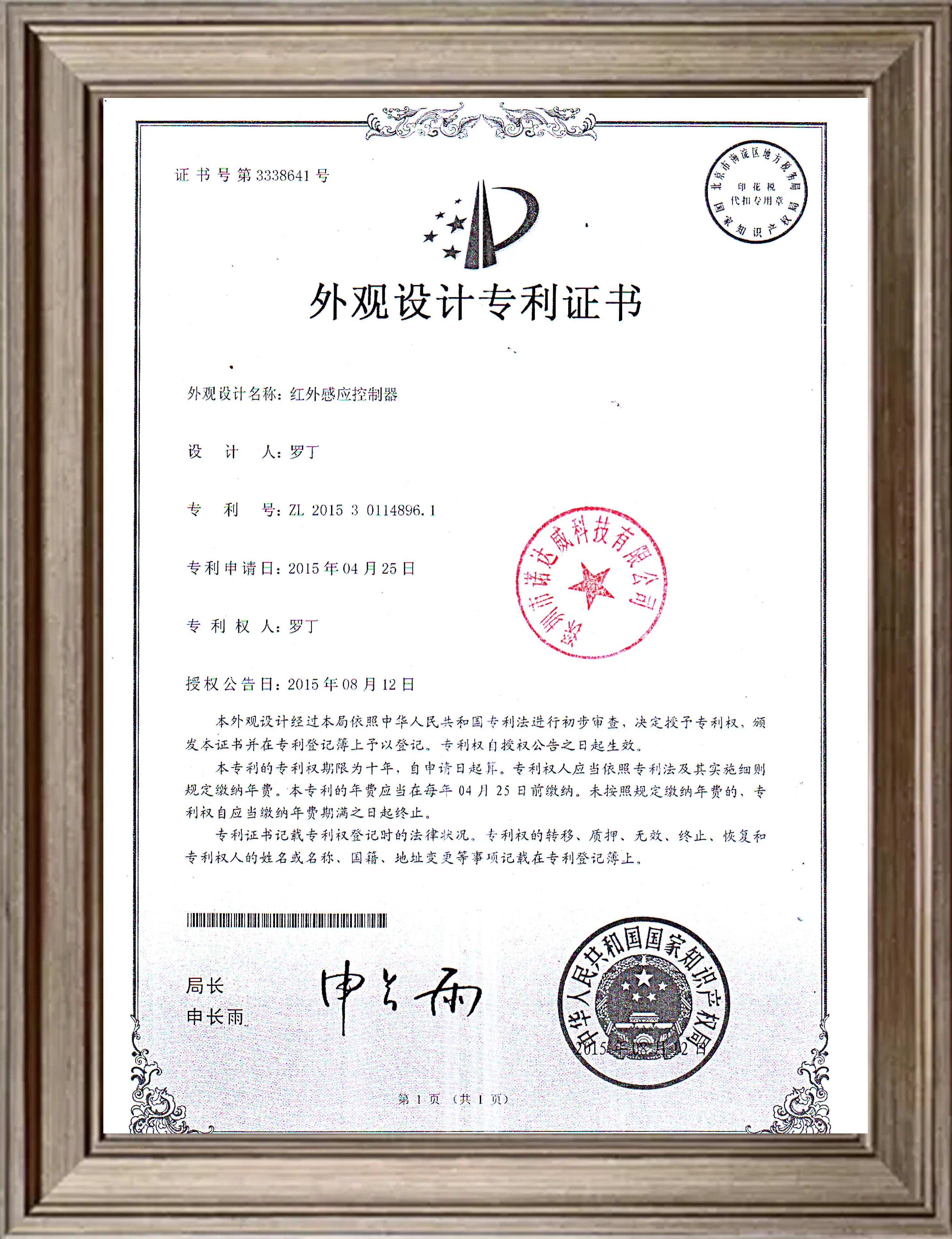

Design patent No: ZL 2015 3 0114896.1

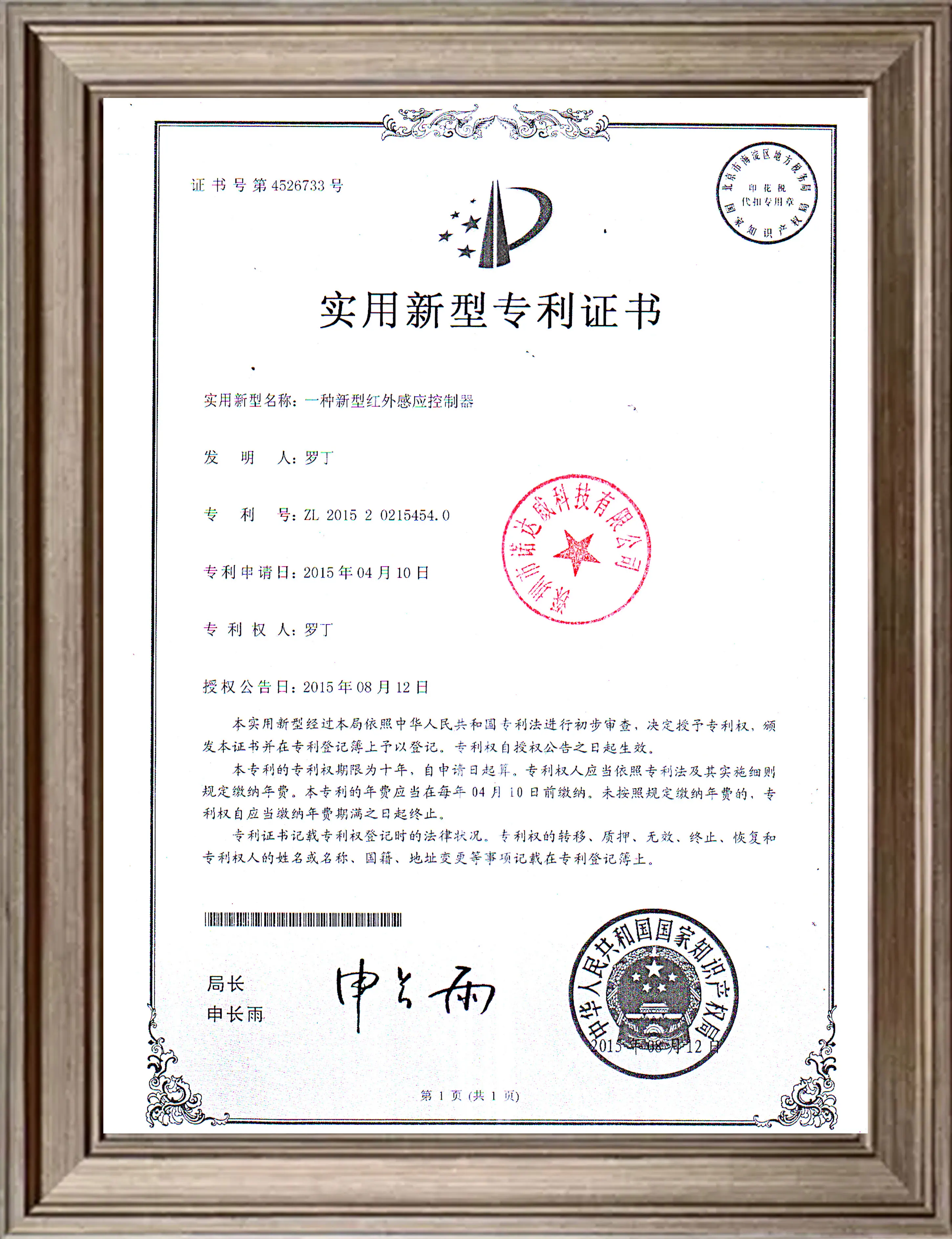

Utility model patent No: ZL 2015 2 02 15454.0
sensor: Human infrared motion sensor
Application: LED light, exhaust fan, Alarm lamp sensor
load current: 5A
Product size: L50x W26x H21.5mm
Certification: CE FCC ROHS TUV ETL PSE
Selling Units: Single item
Single package size: 15X10X4 cm
Single gross weight: 0.040 kg
Special Key Feature: light sensor switch, occupancy sensor switch, outdoor light sensor switch, microwave sensor switch, door sensor switch, pir sensor switch, water sensor switch, daylight sensor switch, motion sensor light switch, magnetic sensor switch, infrared sensor switch, humidity sensor switch, photocell sensor switch, vibration sensor switch, wind sensor switch

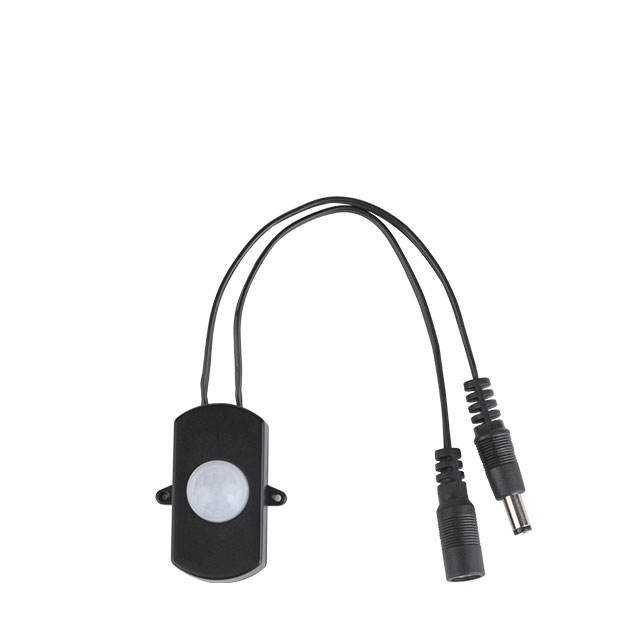

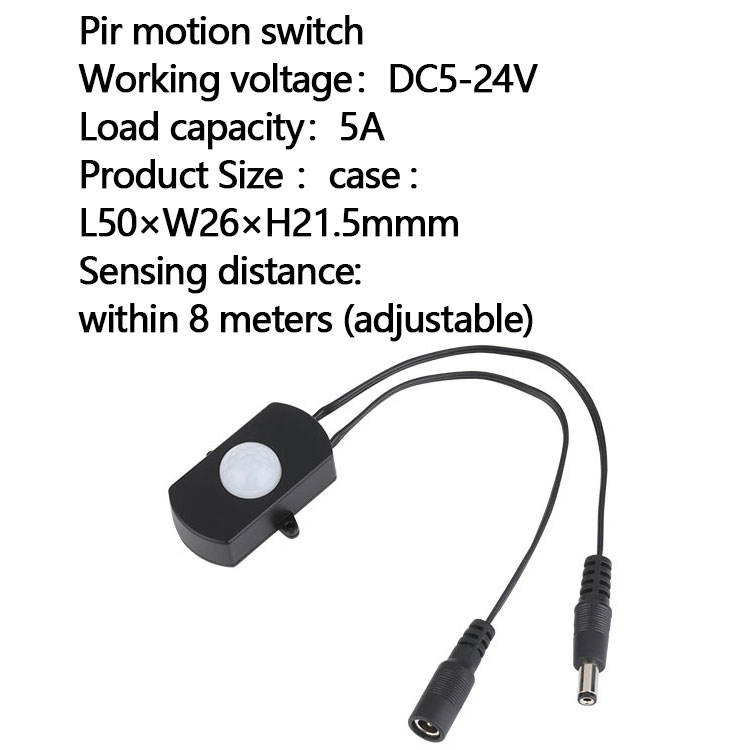

Product name: Nodav Patented product Pir motion switch
Design patent number: ZL 2015 3 0114896.1
brand: Nodav
model: NS001
working voltage: DC5-24V(5V/6V/9V/12V/24v) input = output
Load capacity: 5A
Output power: 25W(5V)/30W(6V)/45W(9V)/60W(12V)/120W(24V)
Sensing distance: within 8 meters (adjustable)
Induction angle: 120 °
Delay time: 5 seconds - 10 minutes (adjustable)
Light sensing control: all weather sensing
Applicationg: LED light , exhaust fan, alarm, etc sensor
instructions: 1.Connect the inductive switch according to the wiring diagram, and the LED light will be on automatically. The first time of power on is set by the delay time before power on. After that, the inductive switch will enter the detection state, and the LED light will be on when human activity is detected.
2. Sensing distance: factory default about 8 meters, sens counter clockwise
rotation, sensing distance shortened.
3. Delay time: factory default about 5 seconds, ontime clockwise rotation, delay time growth.
Working Mode: 1.Automatic induction, when people enter the detection area of the induction switch, the light will be on, and when people leave,it will be automatically delayed and turned off.
2. During the lighting period, every effective human activity will automatically delay the induction switch for a delay period.
Wiring mode: Dc2.1 bus is the input line, connected to the power transformer terminal;
Dc2.1 bus is the output line, connected to the load led lamp terminal;
Installation mode: Open the bottom box, adjust the sensing distance sens parameter setting and the delay time on parameter setting. Fix with 2mm diameter screw.
matters needing attention: 1. During installation, live wiring is not allowed, load short circuit is strictly prohibited, and power on after installation.
2.In strict accordance with the wiring diagram docking, once the wrong connection will damage the switch, resulting in power supply line failure.
3. It is strictly forbidden to use in the range of over power, otherwise the switch will be burned.
4. Do not install the switch in the place with strong light or cold air flow. The switch should not be placed in the place with high power RF radiation (for example, the place with radio, walkie talkie and antenna).
Fault diagnosis: 1. Phenomenon: there is no effective movement, load work, reason: the sensitivity is too strong, solution: adjust the sensing distance sens setting,rotate counterclockwise
2. Phenomenon: there is movement activity, the load does not work, reason: the
movement speed is too fast or the detection area is set too small, solution: check the detection area setting.
