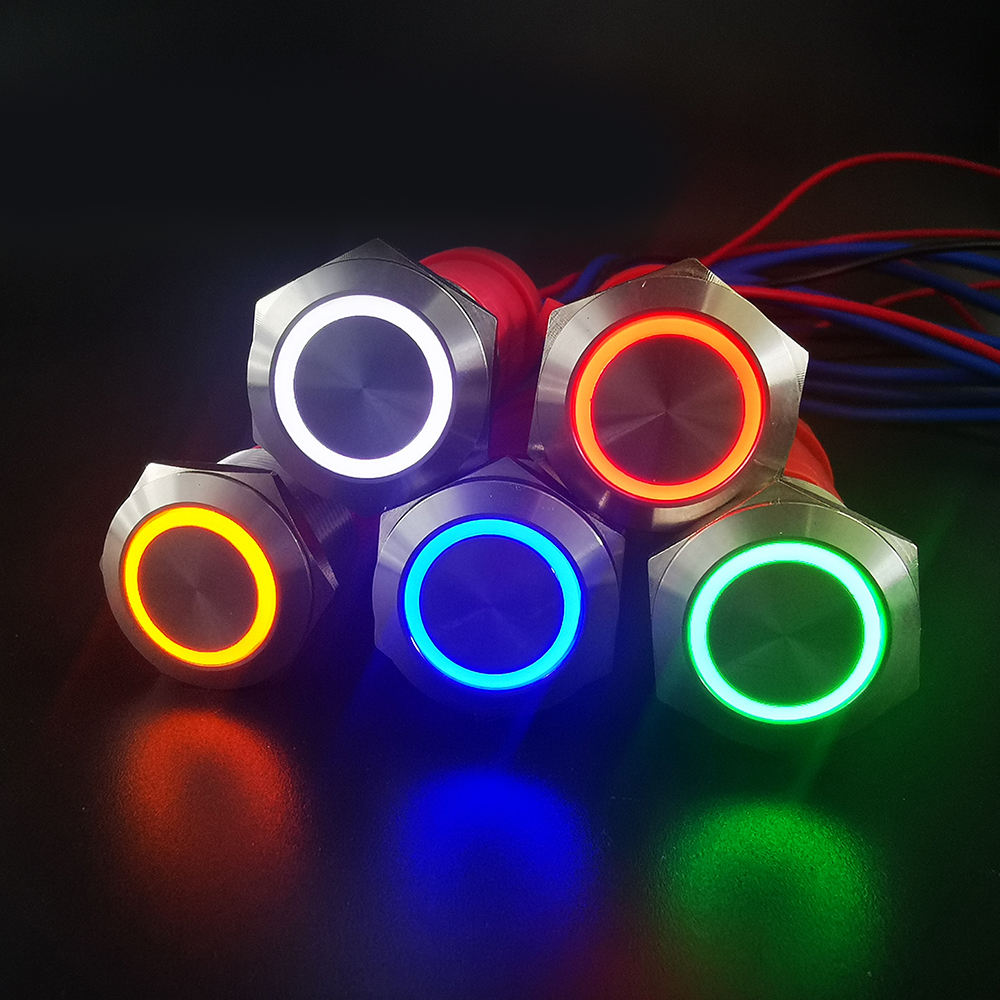

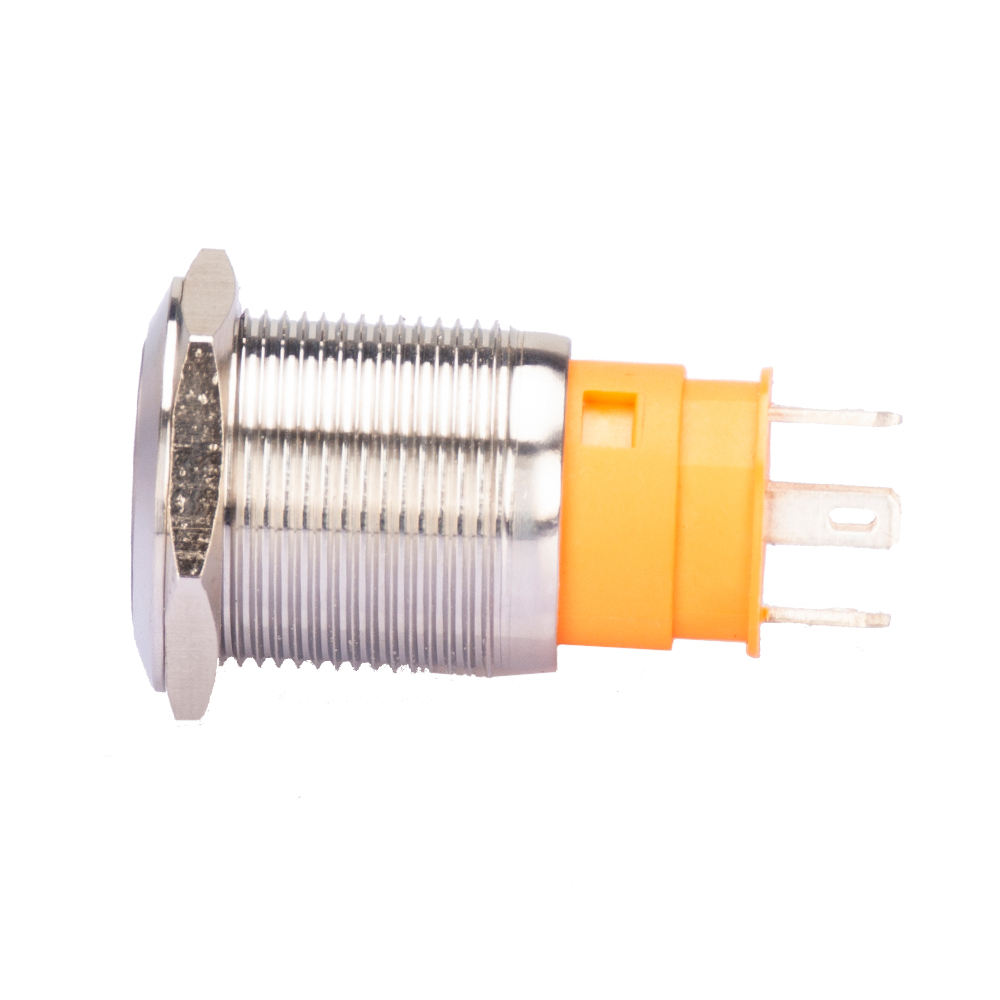

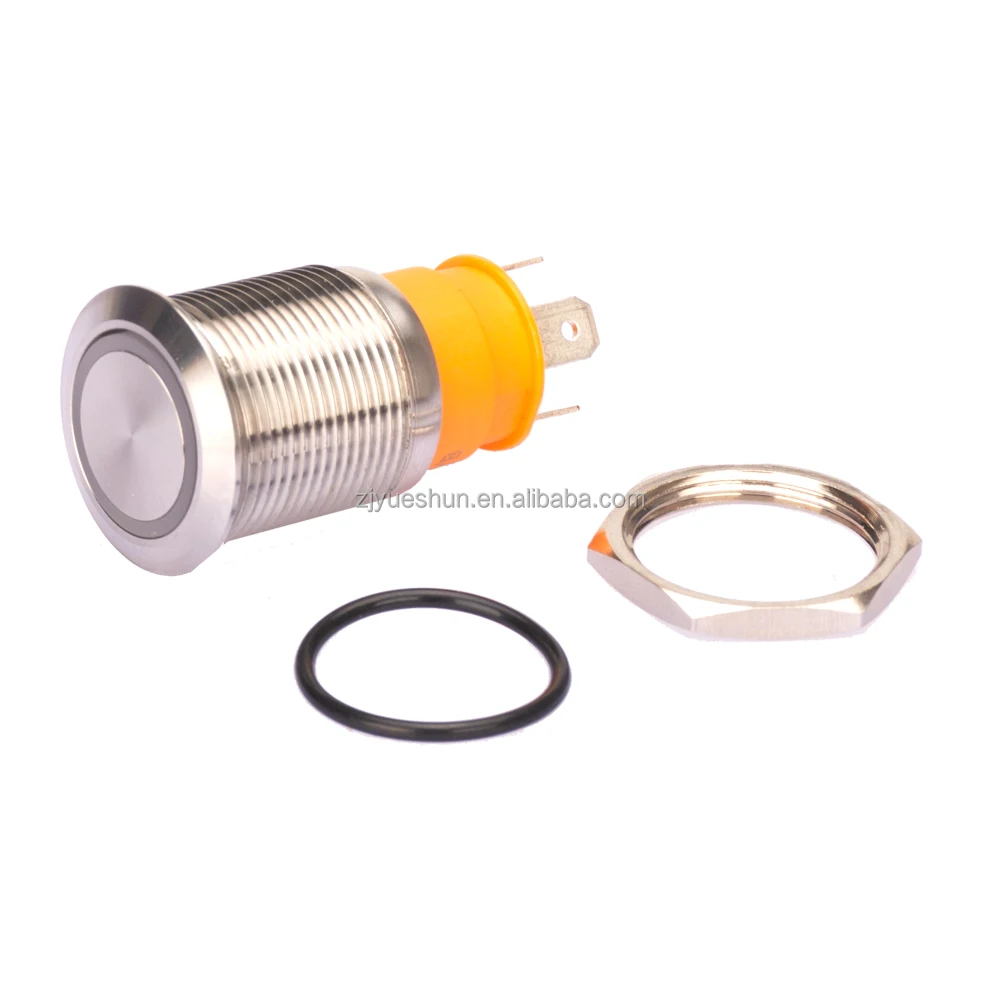

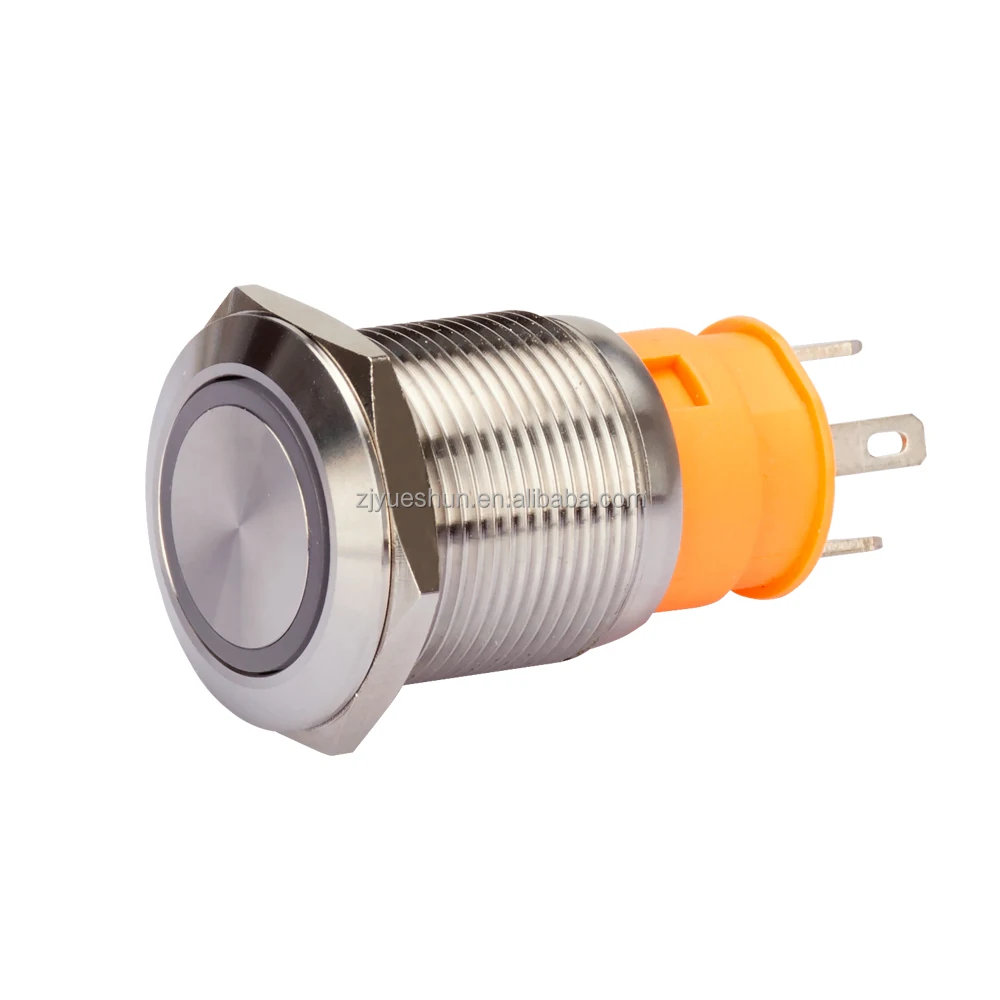

IP67 20amp Heavy Load Lamp Illuminated High 22mm 19mm Metal Marine Push Switch Button
IP67 20amp Heavy Load Lamp Illuminated High 22mm 19mm Metal Marine Push Switch Button
IP67 20amp Heavy Load Lamp Illuminated High 22mm 19mm Metal Marine Push Switch Button
IP67 20amp Heavy Load Lamp Illuminated High 22mm 19mm Metal Marine Push Switch Button
IP67 20amp Heavy Load Lamp Illuminated High 22mm 19mm Metal Marine Push Switch Button
IP67 20amp Heavy Load Lamp Illuminated High 22mm 19mm Metal Marine Push Switch Button
IP67 20amp Heavy Load Lamp Illuminated High 22mm 19mm Metal Marine Push Switch Button
IP67 20amp Heavy Load Lamp Illuminated High 22mm 19mm Metal Marine Push Switch Button
IP67 20amp Heavy Load Lamp Illuminated High 22mm 19mm Metal Marine Push Switch Button
IP67 20amp Heavy Load Lamp Illuminated High 22mm 19mm Metal Marine Push Switch Button
IP67 20amp Heavy Load Lamp Illuminated High 22mm 19mm Metal Marine Push Switch Button
IP67 20amp Heavy Load Lamp Illuminated High 22mm 19mm Metal Marine Push Switch Button
IP67 20amp Heavy Load Lamp Illuminated High 22mm 19mm Metal Marine Push Switch Button
IP67 20amp Heavy Load Lamp Illuminated High 22mm 19mm Metal Marine Push Switch Button
IP67 20amp Heavy Load Lamp Illuminated High 22mm 19mm Metal Marine Push Switch Button

IP67 20amp Heavy Load Lamp Illuminated High 22mm 19mm Metal Marine Push Switch Button

🚀 Source the Wow. Sell the Fun. Scale Your Business.

Tired of the same old suppliers? We get it. Whether you're a neighborhood shop, a creative YouTuber, or a business sourcing unique promotional items, you need products that tell a story, spark conversation, and fly off your shelves.

Why Partner With Us?

✓ True Small-Order Wholesale: Mix & match categories. No massive minimums.

✓ Competitive Pricing: Factory-direct deals, so you keep your margins healthy.

✓ Lightning-Fast Sourcing: We constantly hunt for the next big thing so you don't have to.

✓ Customization Options: From custom packaging to laser-engraved logos, build your brand with us.

⚠️ Don't just stock products, stock conversations. We're your partner in profit, supplying the unique goods that bring customers back.

🌟 Small Orders, Big Impact. Let's Grow Together.

🏭 Wholesale Inquiry Business

Interested in our products for your business? Fill out the form below and we'll get back to you with wholesale pricing and options.

Product Description

Max. Current:   20a
Max. Voltage:   250V AC/DC
Switch Combination:   1NO
Place of Origin:   ZHE
Model Number:   LA19D-10EY/S
Brand Name:   YUESHUN
Application:   Electric, Home Appliance, Industrial Control
Head Type:   Round Head, Flat Head

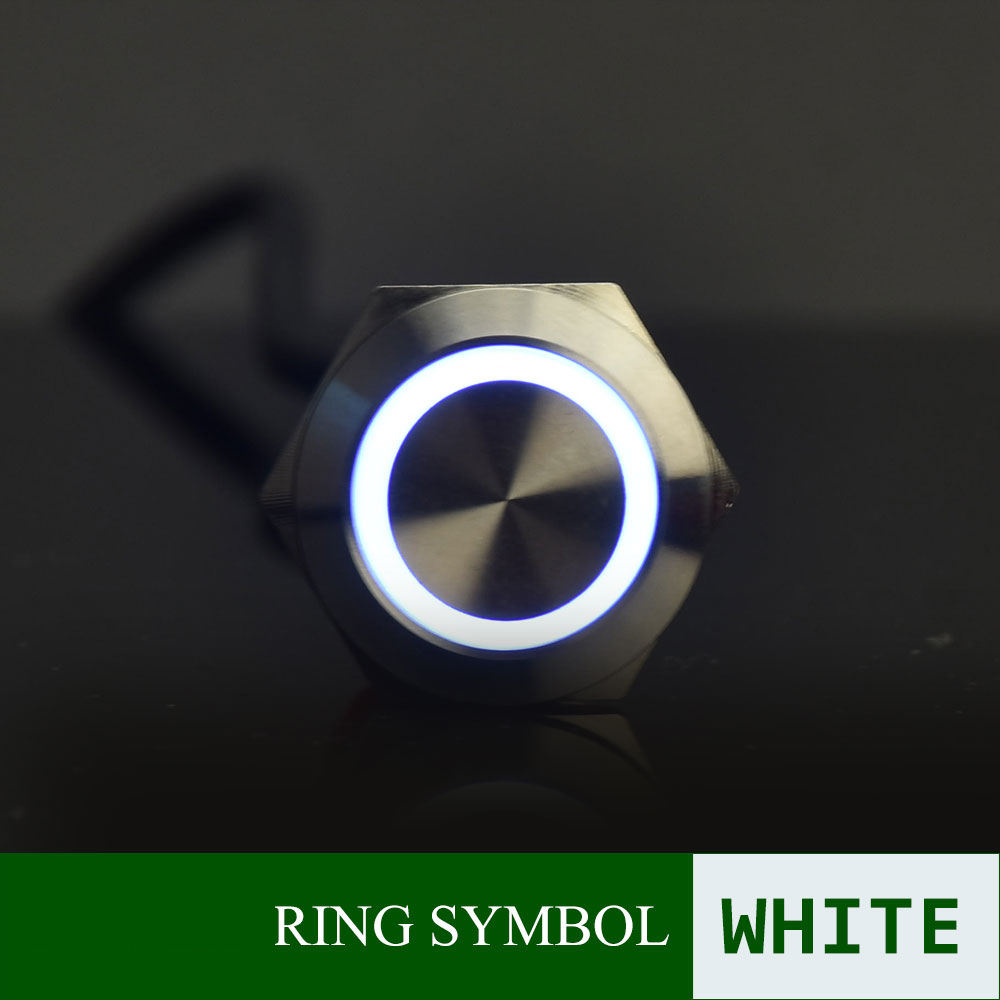

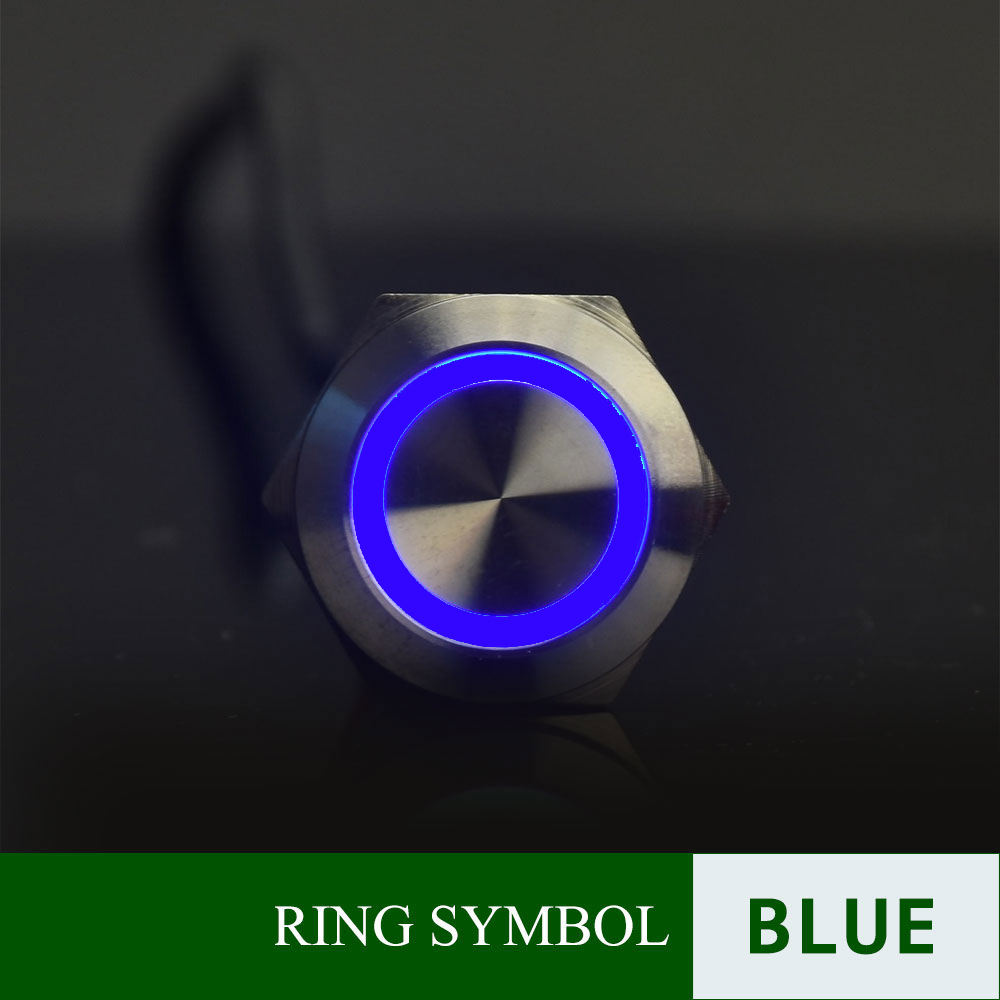

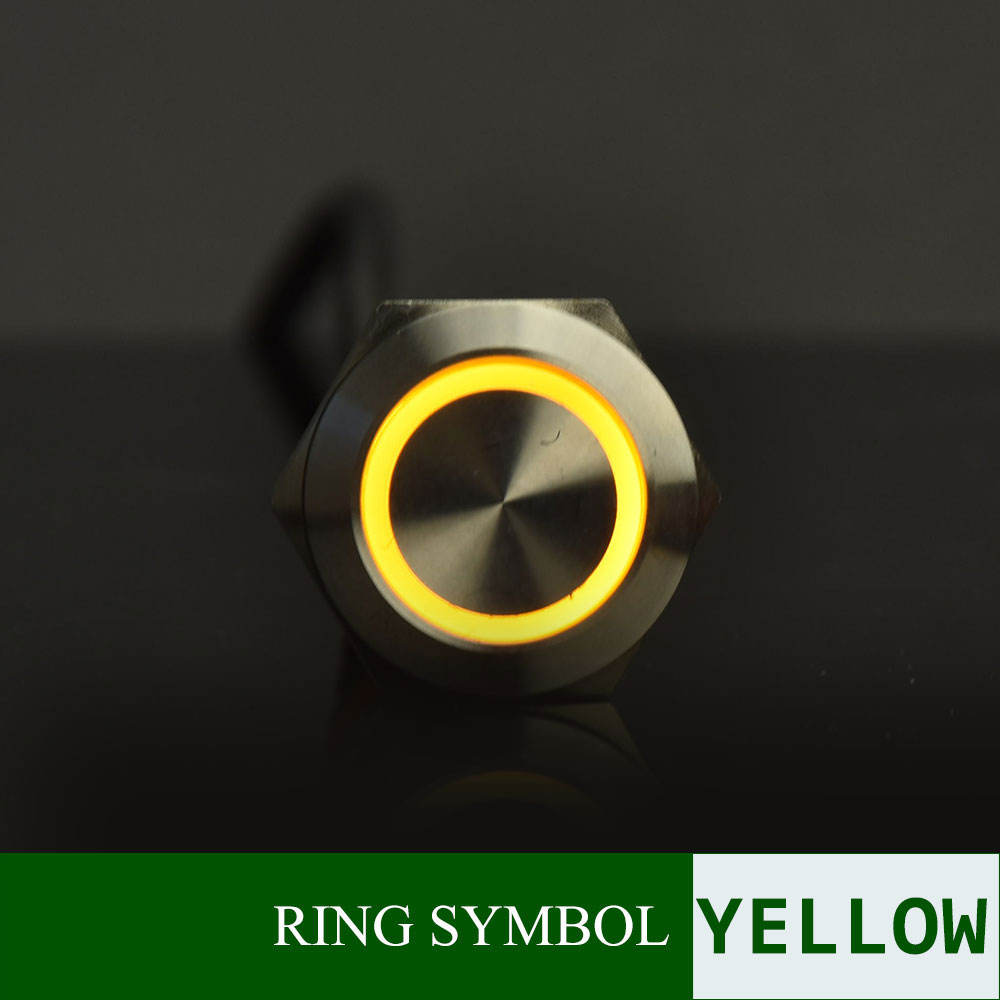

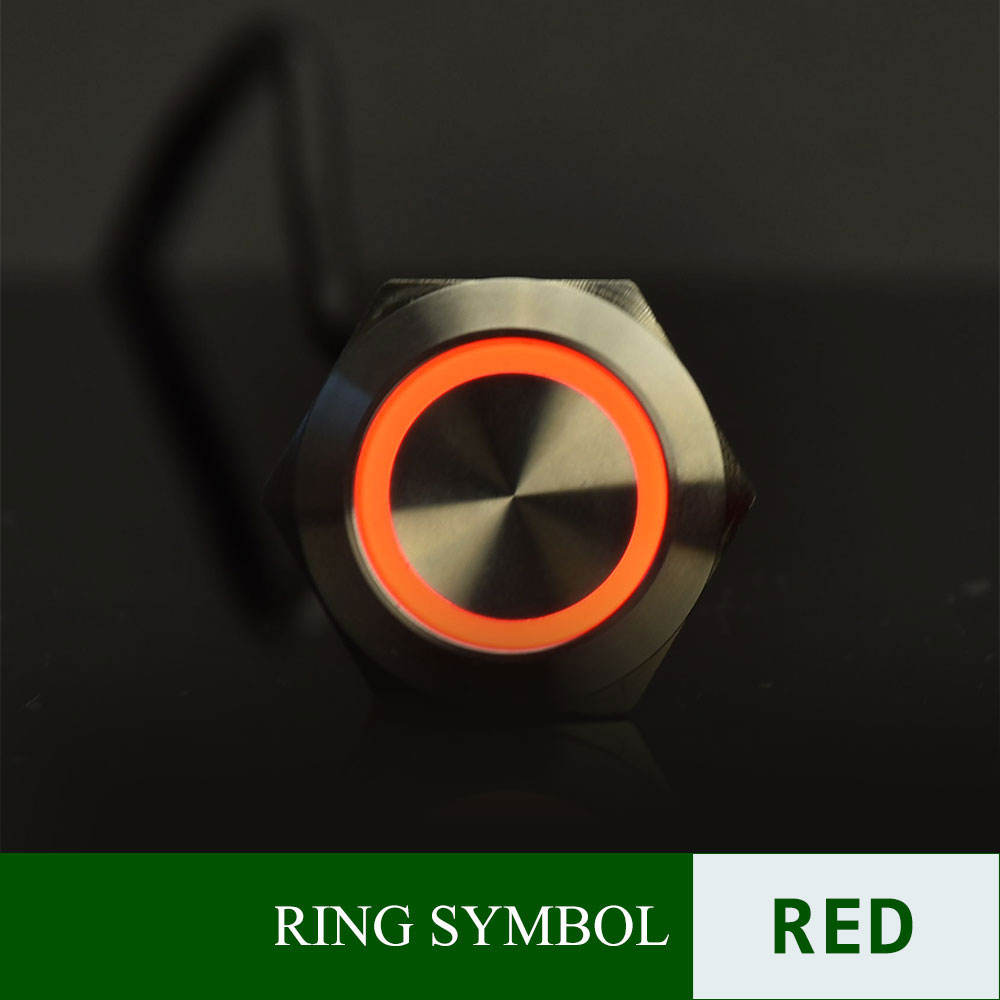

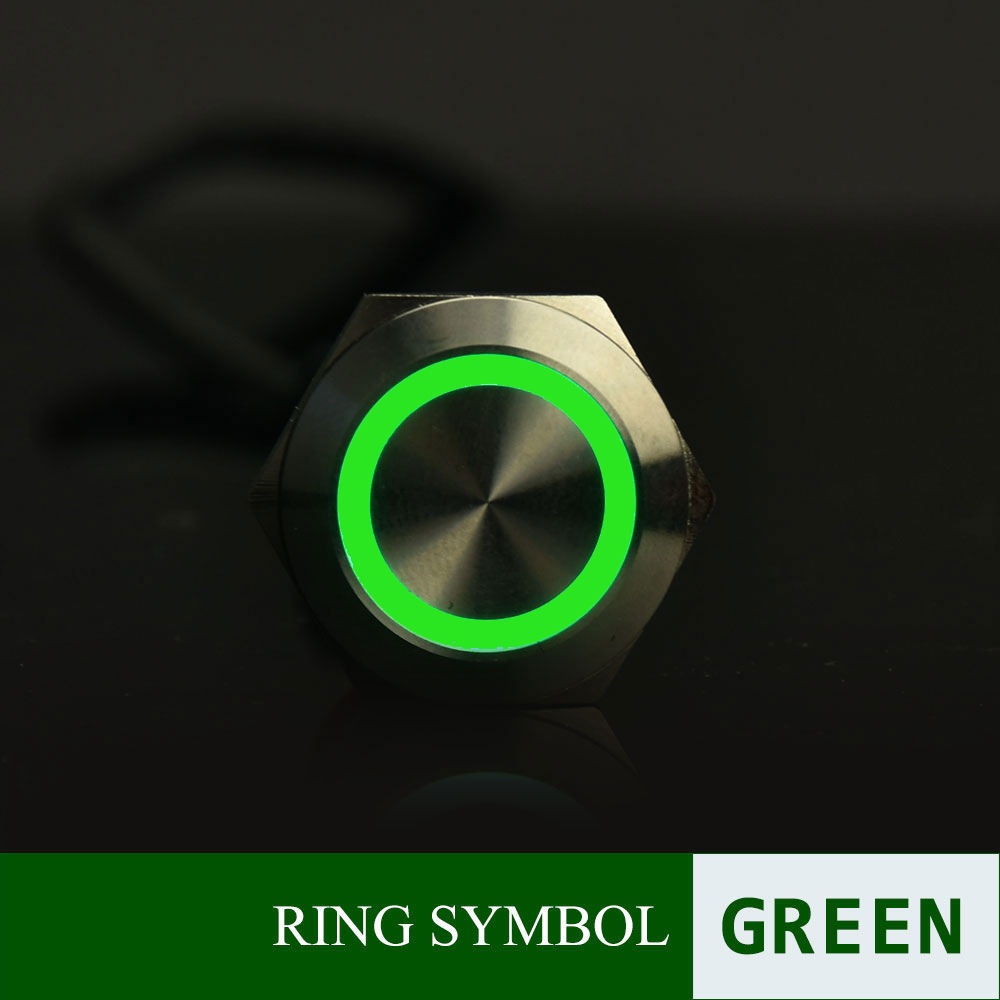

Illuminated Type:   Ring Illuminated
IP level:   IP67
LED:   Yes
Material:   Stainless Steel
Structure:   Mechanical

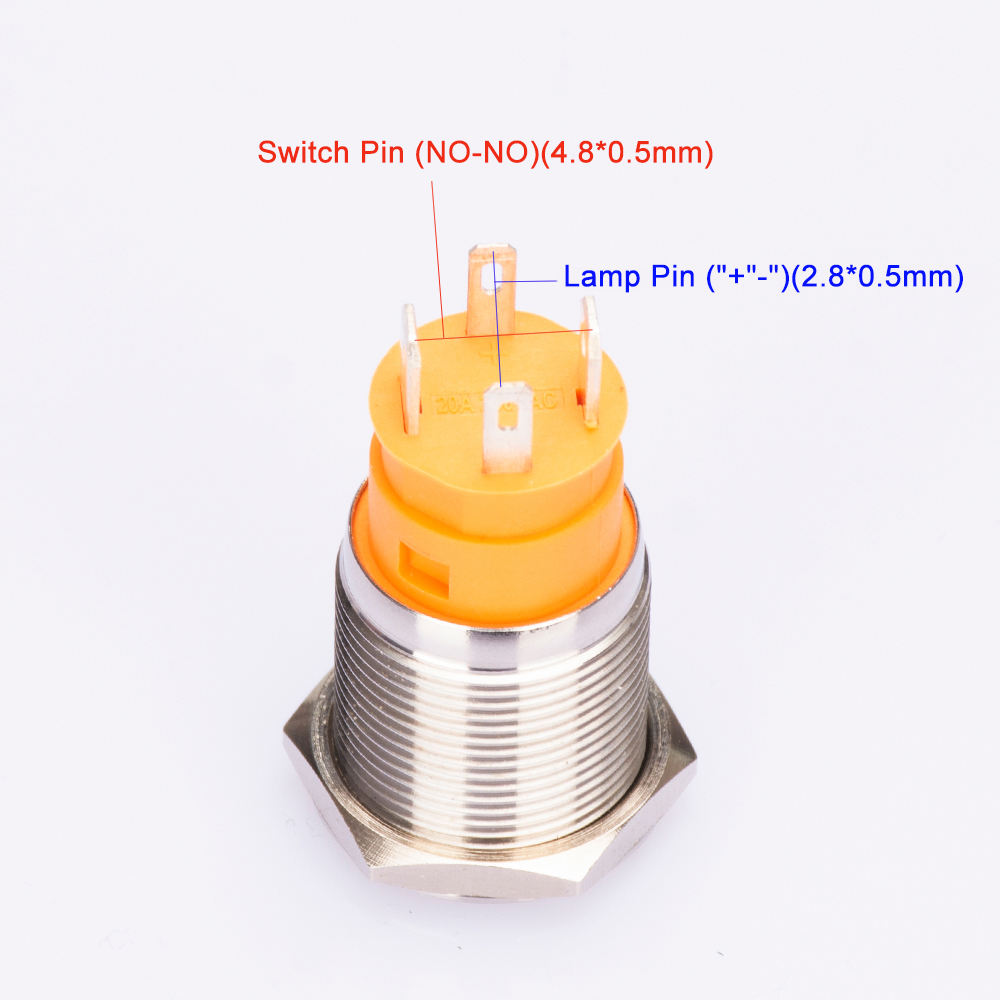

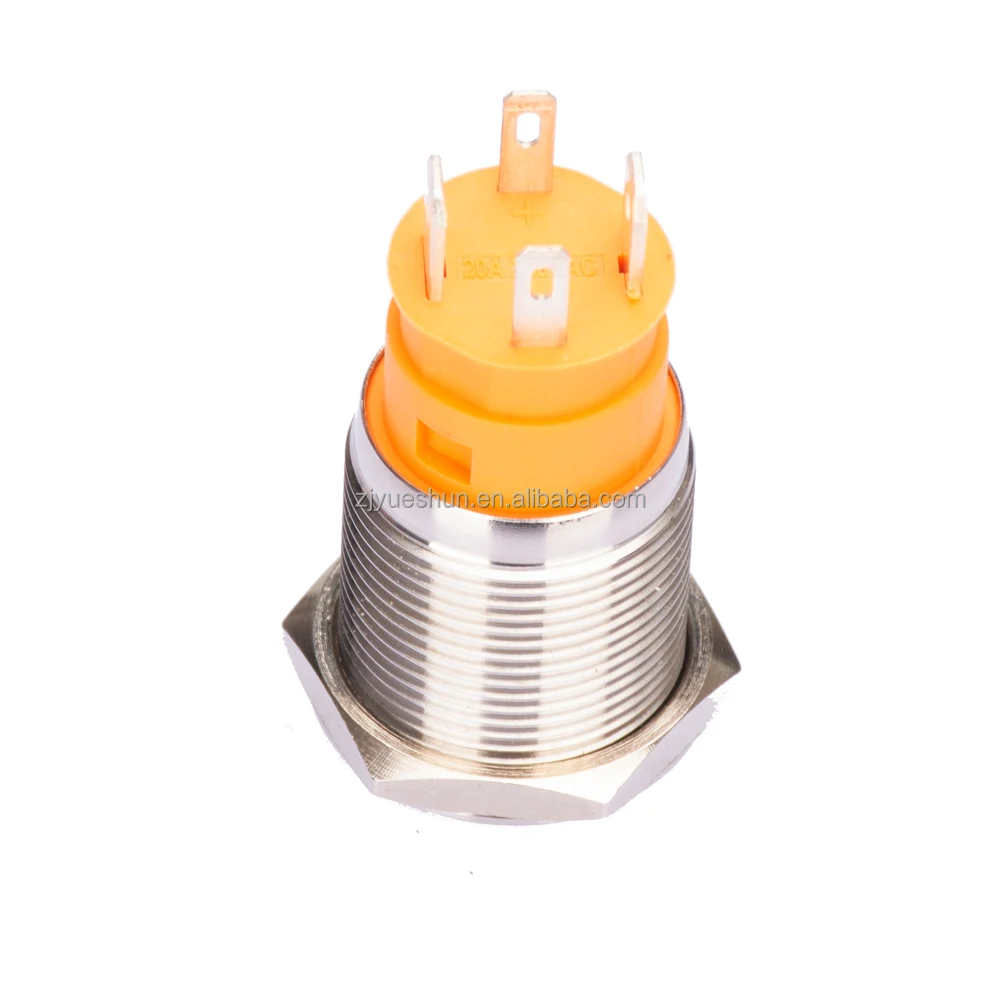

Terminal Type:   Pin Terminal
Whether The Smart:   No
Product name:   Illuminated Push Button Switch
Operation type:   Self-locking Momentory

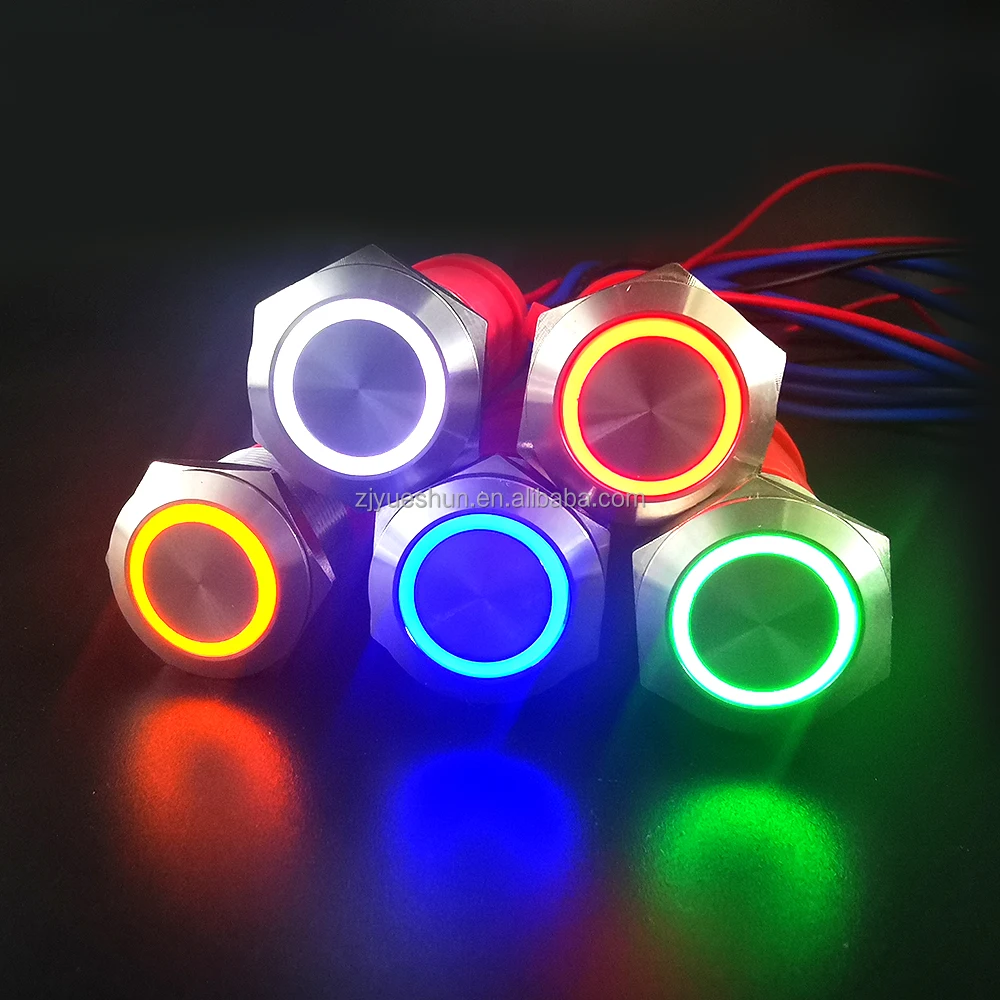

LED color:   Red.Yellow.Green.White.Blue.Orange
Mounting Hole Size:   19mm 22mm Diameter
Rating:   20A 250VAC/DC
Crust material:   Stainless Steal
Emitting Type:   Annular+Symbol LED
Contact configuration:   1NO- Normal Open
Mechanical Life:   More than 100,0000times
Selling Units:   Single item
Single package size:   5X5X2 cm
Single gross weight:   0.040 kg
Special Key Feature:   push button, wireless push button, latching push button, push button switch, metal push button, air switch button, emergency push button, doorbell button, button switch, micro push button, usb push button, bluetooth push button, emergency stop button, rubber push button, schneider push button
Install Diameter:   19mm 22mm
Head Shape:   Flat Round Head
Panel Thickness:   1-10mm
Operating Distance:   About 2.5mm
Body Material:   304 Stainless Steel / 316 Stainless Steel / aluminum oxidation
Button Material:   304 Stainless Steel / 316 Stainless Steel / aluminum oxidation
Base Material:   PBT
Contact Material:   Silver Alloy
LED Type:   Annular LED
LED Voltage:   3V / 6V / 12V / 24V / 36V / 110V / 220V
LED Life:   More Than 40,000 hours
Max Switch Rating:   10A 15A 20A / 250V AC DC
Contact Resistance:   ≤ 50mΩ
Insulation Resistance:   ≥ 10000mΩ
Dielectric Strength:   2000VAC
Electrical Life:   More than 100,000 cycles
IP Degree:   IP 67
Operation Temperature:   20℃～+55℃
Operating Pressure:   About 3-5N
Torque:   5-14Nm

Rated Voltage: 3 V: 3 V

Rated Voltage: 3 V: 6 V

Rated Voltage: 3 V: 12 V

Rated Voltage: 3 V: 24 V

Rated Voltage: 3 V: 110 V

Size: 19mm Momentary

Size: 19mm Latching

Size: 22mm Momentary

Size: 22mm Latching

🍪
