Product Description
Max. Current: 15A
Max. Voltage: AC 250V
Place of Origin: Zhejiang, China

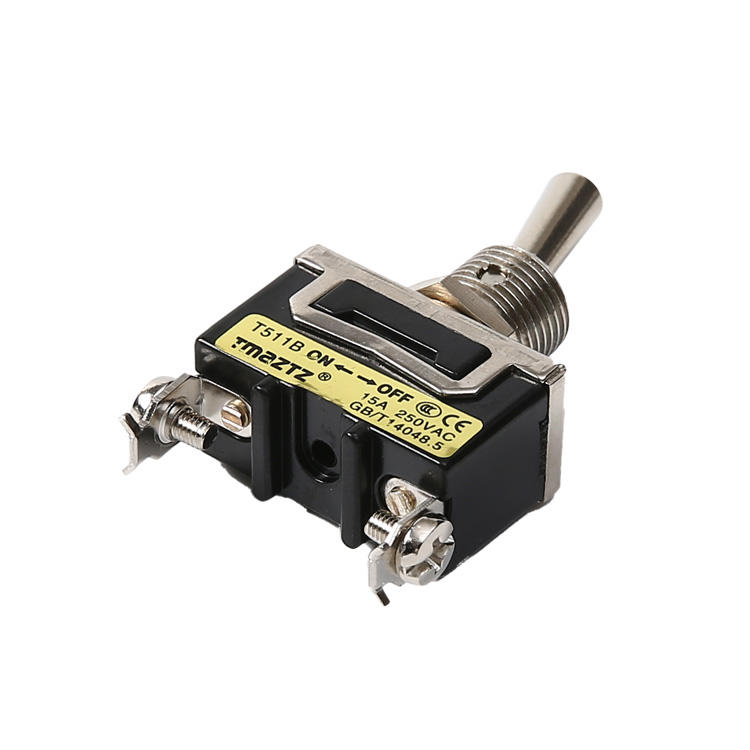

Model Number: T511B
Brand Name: TMAZTZ
Contact Form: SPDT

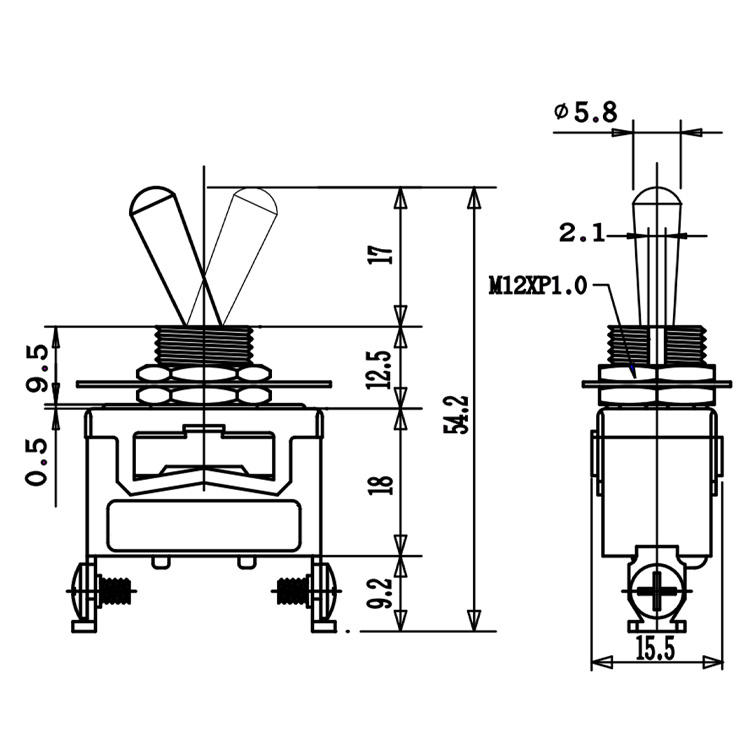

Installation Size: 12mm
Pins: 2P
Switch Function: ON/OFF
Whether The Smart: No
Certification: /
Selling Units: Single item
Single package size: 0.06X0.04X0.05 cm
Single gross weight: 0.040 kg
Special Key Feature: mobile accessories, mobile phone accessories, smartphone accessories, sports accessories, couple accessories, iphone 6 accessories, cell phone accessories, kancil accessories, porsche accessories, dental assistant accessories, running accessories, cellphone accessories, handphone accessories, panda accessories, apple ipad accessories
Operation Speed: 0.01mm-1m/sec
Operating Frequency: Electrical: 20 operations/min
Contact Resistance: 15mΩ max. (initial value)
Insulation Resistance: 100mΩ above (under 500VDC)
Dielectric Strength: 2000VAC,50/60Hz for 1 minute
Vibration: 10-55Hz, 1.5mm double ampliude
Ambient Temperature: Using: -10℃~+80℃ (With no icing)
Humidity: <85% RH
Electrical Life: 500,000 operations above
Load: Type AC Rating DC Rating
Resistance Load: CO 10A 250V 15A 125V 0.4A 250V 0.8A 125V
C5: 15A 250V 20A 125V 0.5A 250V 0.9A 125V
Inductive Load: CO 10A 250V 15A 125V 0.2A 250V 0.4A 125V
Lamp Load: CO 300W 100V 500W 200V 30V
Motor Load: CO 200W 125V 300W 250V 7A 30V
CO: 500W 250V(three phase) -
