Product Description

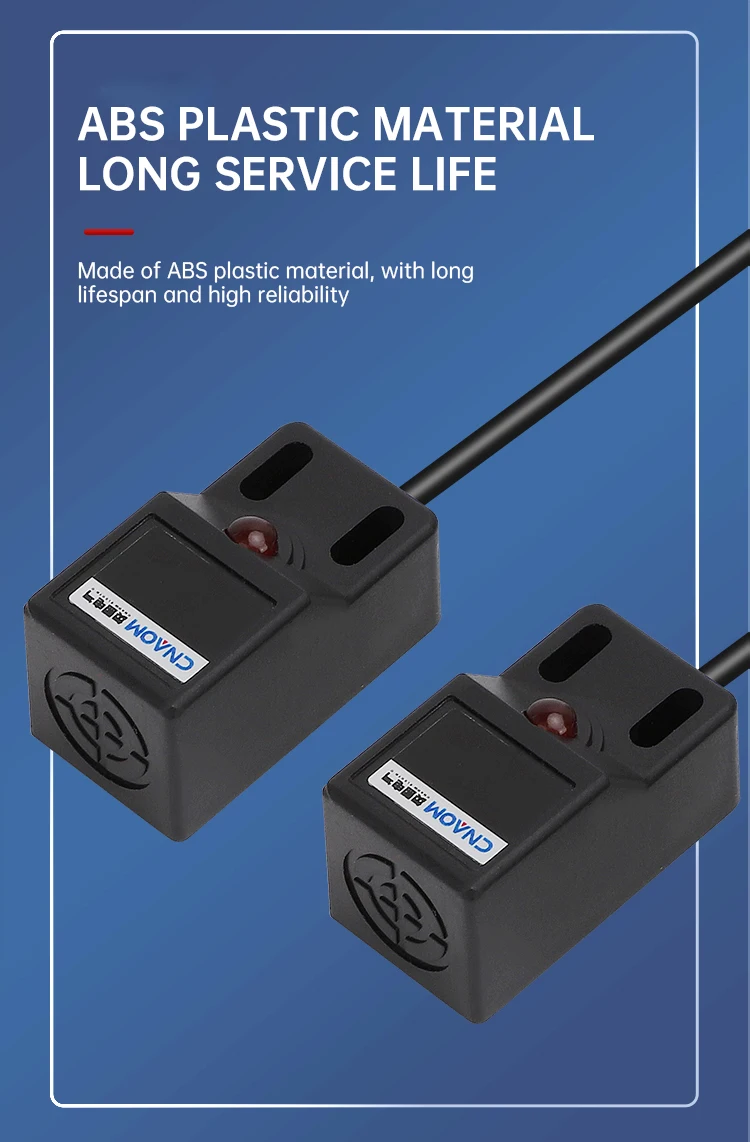

Material: PC

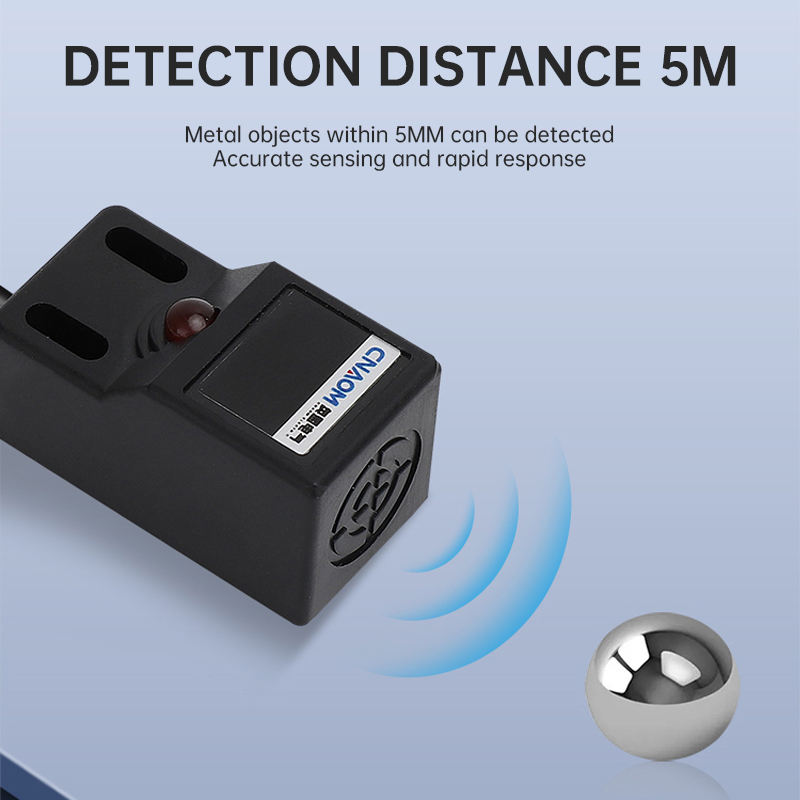

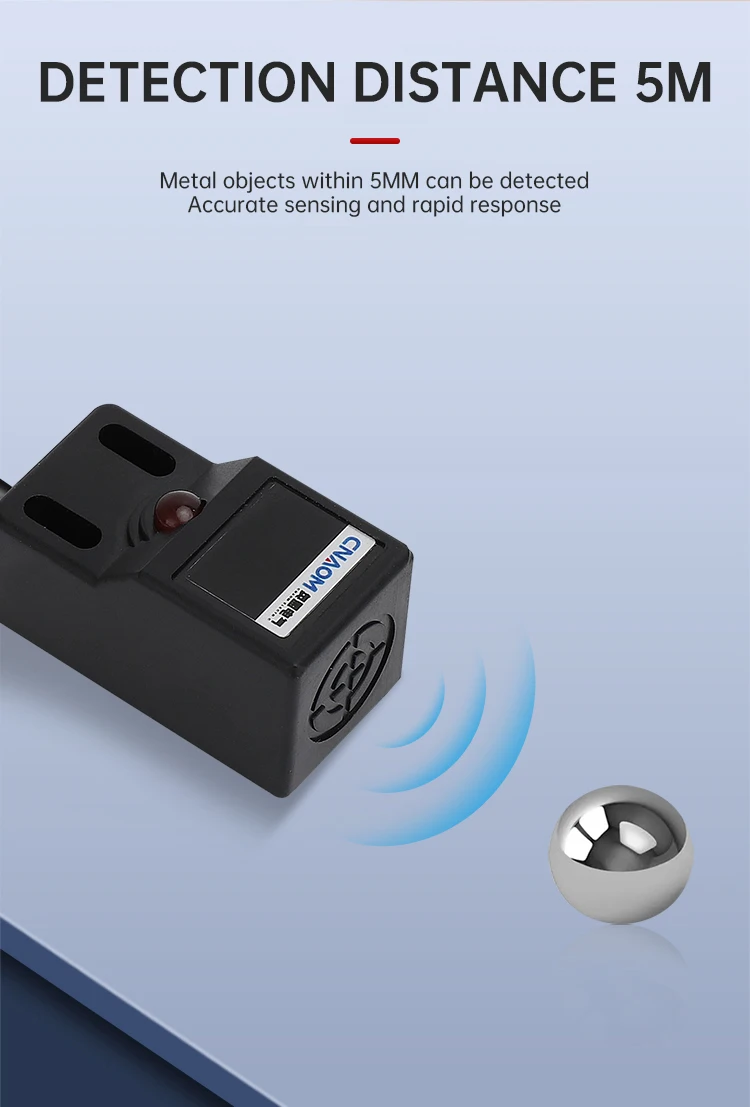

Sensing Range: 1-5 mm
Place of Origin: Zhejiang, China

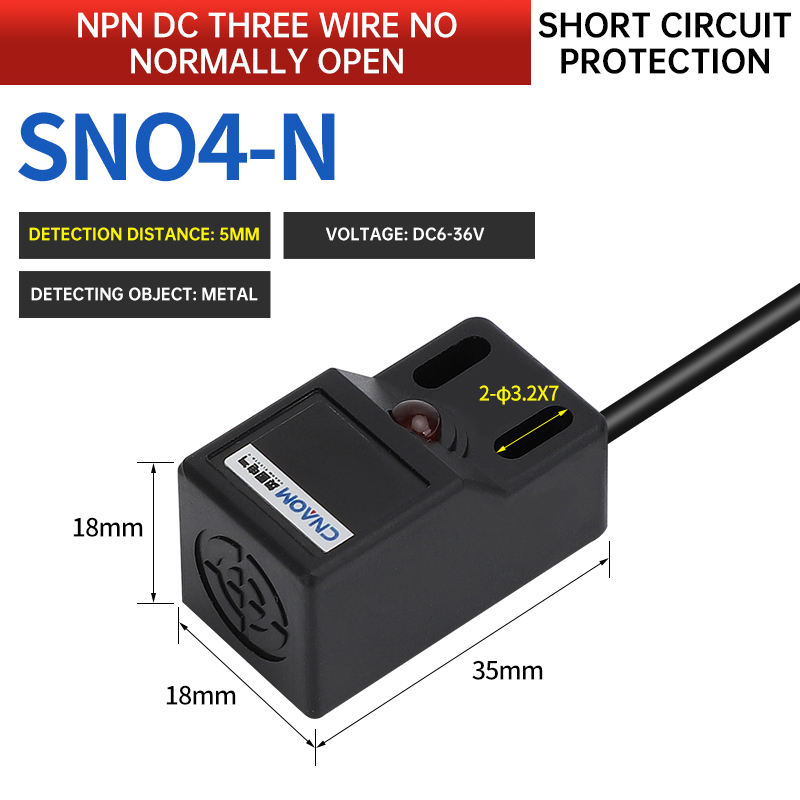

Model Number: SN04-N
Brand Name: Cnaom
IP level: IP65

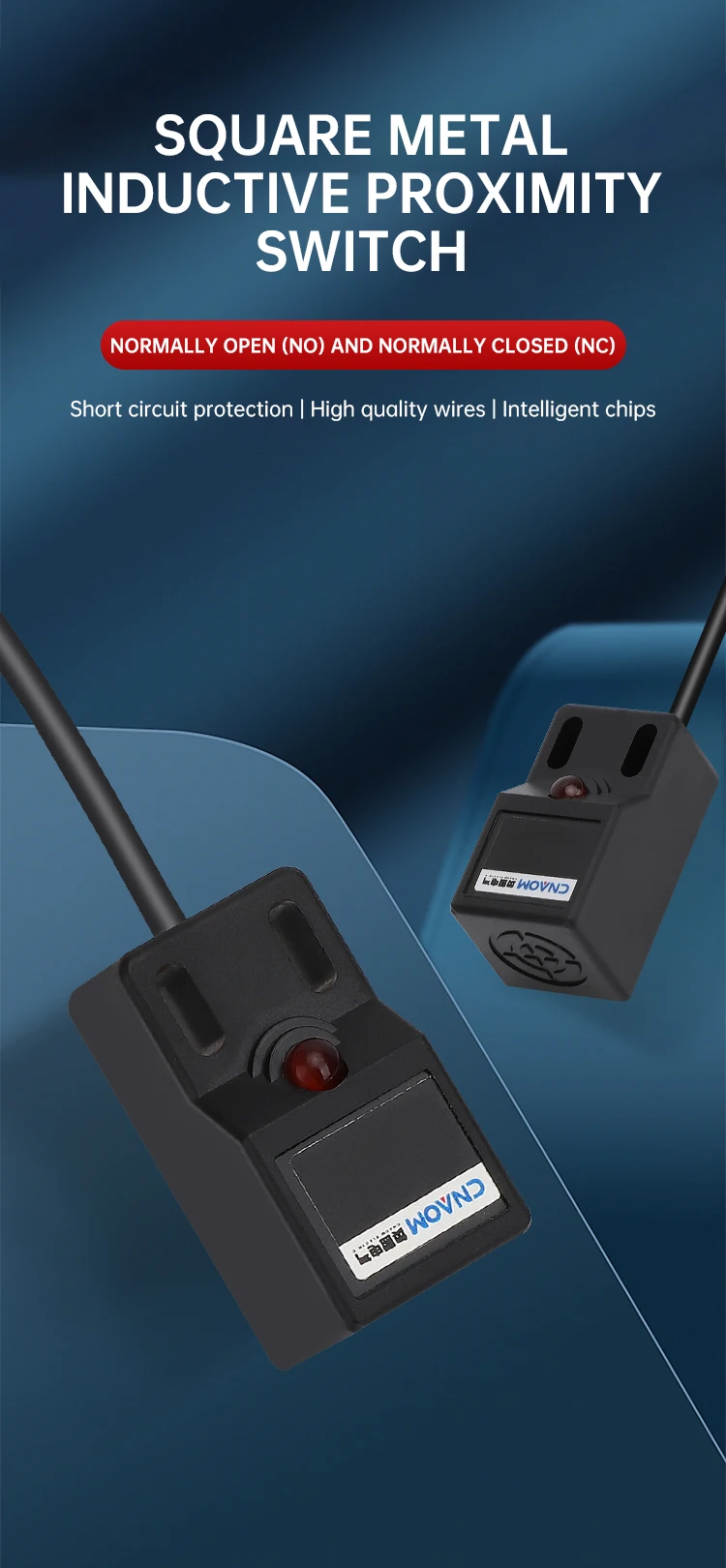

Type: Proximity Switch
Whether The Smart: No
Product Model: SN04-N
Working Voltage: 12V~24V(6-36V) DC
Packing: 5 Piece/Box
Selling Units: Single item
Single package size: 12X15X12 cm
Single gross weight: 0.310 kg
Special Key Feature: switch, g switch, 3com switch, wall switch, euro switch, dimmer switch, mk switch, hager switch, zigbee switch, 2 gang switch, 3 way switch, clap switch, abb switch, rf switch, touch switch
Lag distance:: Less than 10% of the detection distance
Detectingobjects:: Magnetic metal (non-magnetic metal reduces detection distance)
DC type:: DC12-24V (6-36V) pulsation (P-P) below 10%
AC type:: AC110-20V(36-250V)50/60Hz
Current consumption:: N. P type: below 13mA D type: below 0.8mA A type: below 1.7mA
Controloutput:: N.P type: below 300mA D type: below 200mA A type: below 400mA

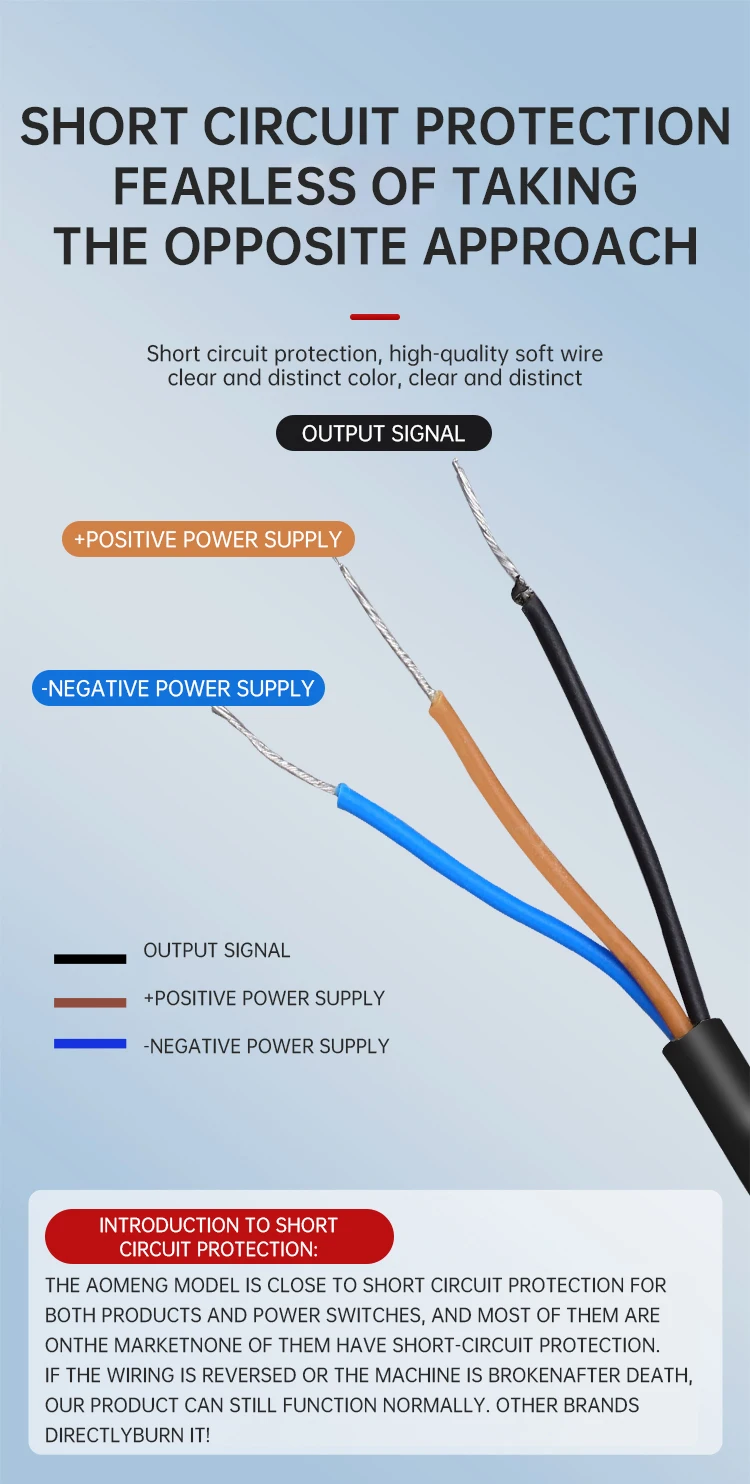

Circuitprotection:: N.P.D type: reverse connection protection, surge absorptionload short-circuit protection,A-type surge absorption

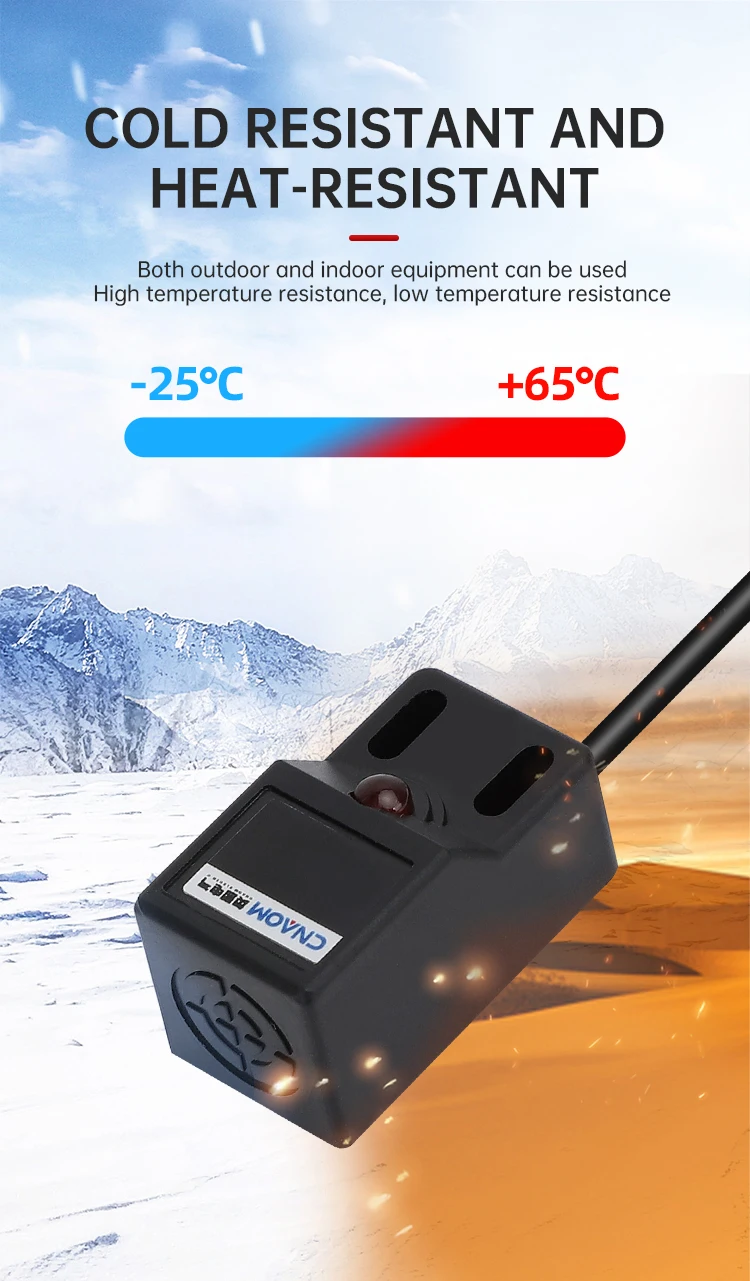

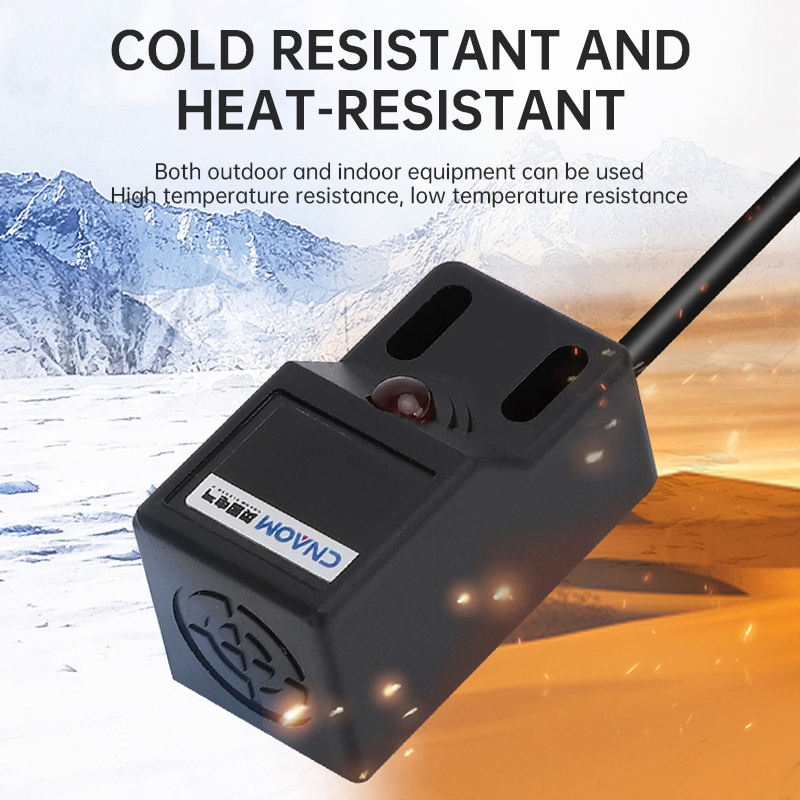

During action and saving:: -30℃ to +65℃ each
(Non freezing, non condensing) During operation andstorage: 35-95% RH each
Insulation impedance:: Between the charging part and the casing of a DC500megohmmeter with a capacity of over 50MQ
Voltage endurance:: AC1000V50/60Hz 1-minute charging section between the chargingpart and the casing
The influence of temperature:: Temperature range -30 to+65°C,within + 15% detectiondistance at+23°(
The influence of voltage:: The influenceRated power supply voltage range within ±15%, rated powersupply voltage value within ± 10% detection distance

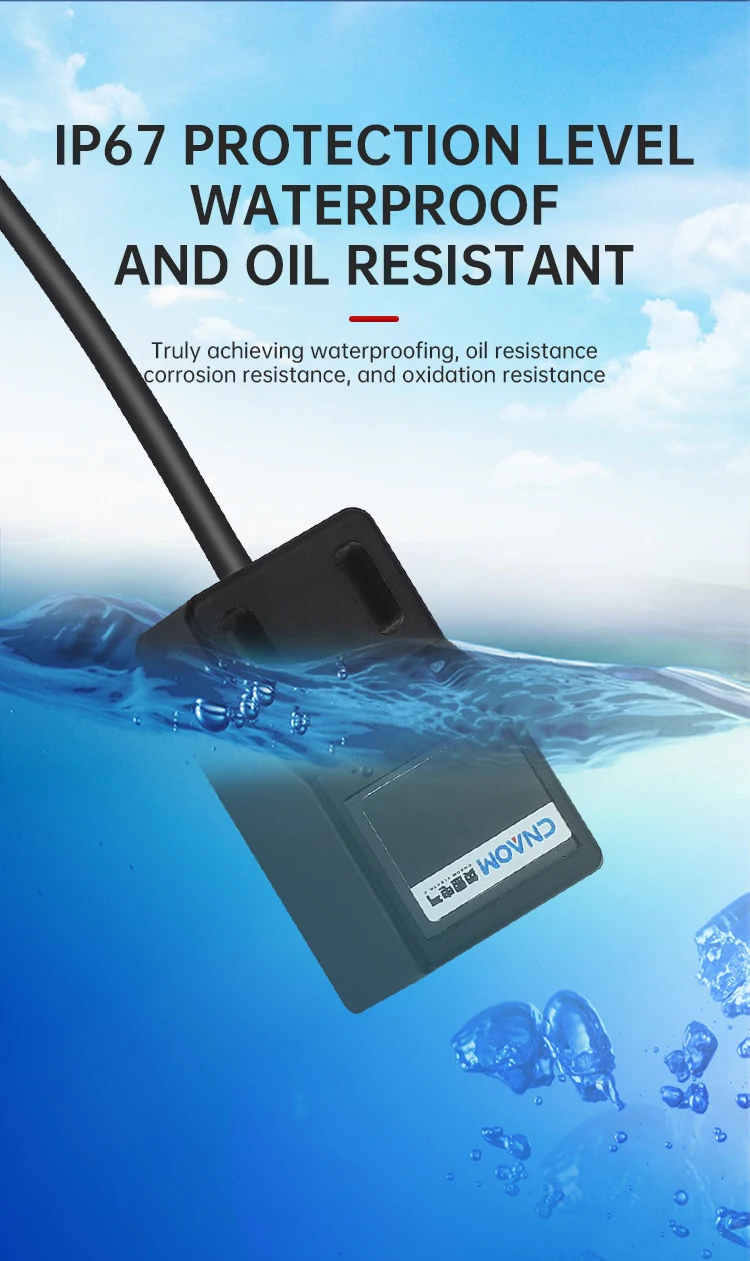

Protectionstructure:: IP67 (lEC specification)
