Product Description
Max. Current: 10A
Max. Voltage: 380V

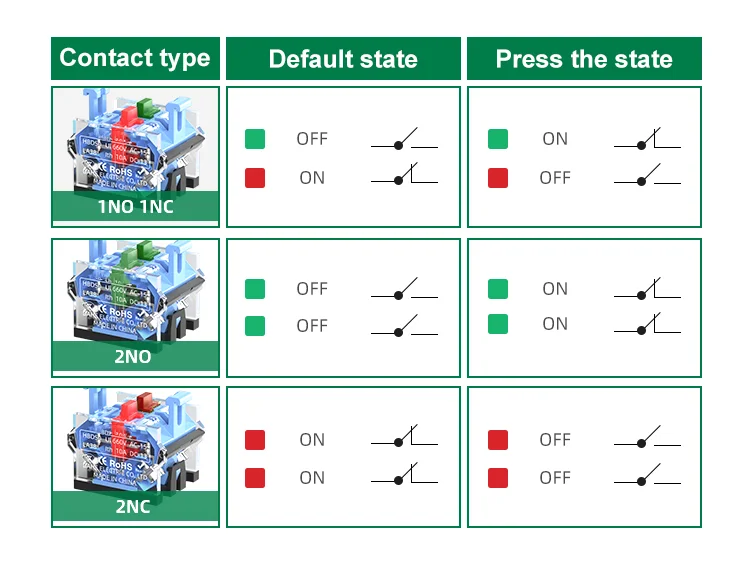

Switch Combination: 1NO1NC
Place of Origin: Hubei, China
Model Number: XB2-22mm
Brand Name: Ashan
Application: Electric, Industrial Control
Head Type: Round Head
IP level: IP65
LED: No
Material: Copper, silver contact
Structure: Mechanical
Terminal Type: Fork Terminal
Whether The Smart: No

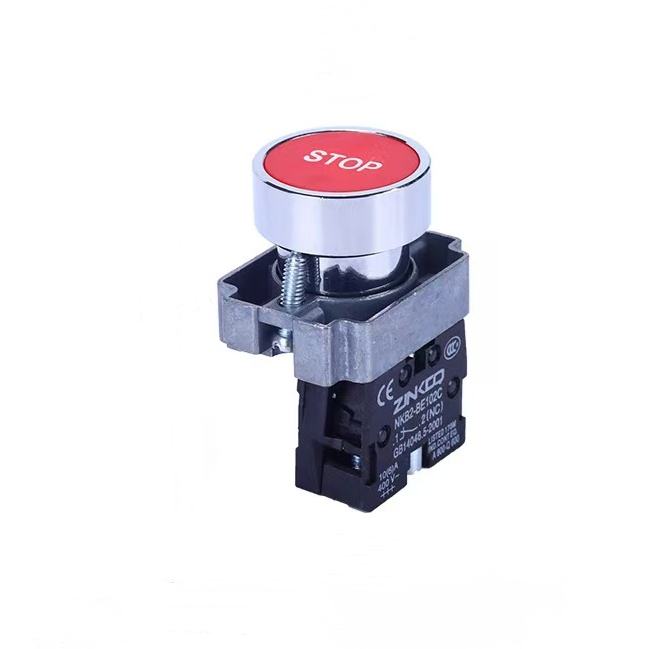

Product name: Push Button Switch
Standard Colors: Red
Shell Material: Flame-retardant plastic

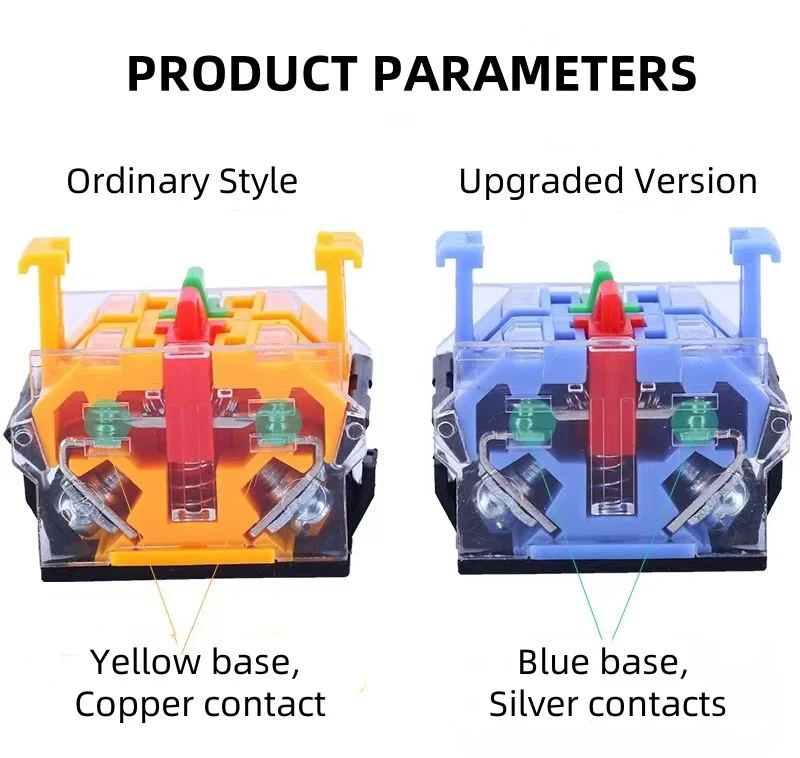

Contact material: Copper Contact, Silver contact
Product feature: Self-locking
Operation type: Momentary/Latching
Mechanical life: More than 500 thousand times
Illuminated type: Ring/Power/Dot/Customized LED
Packaging: 10PCS/BOX
Selling Units: Single item
Single package size: 5.5X3X2.8 cm
Single gross weight: 0.050 kg
Special Key Feature: button switch, emergency push button switch, led push button switch, on off switch, micro push button switch, latching push button switch, selector switch, 12mm push button switch, foot switch, remote push button switch, 12v push button switch, small push button switch, push switch, push button micro switch, push pull switch

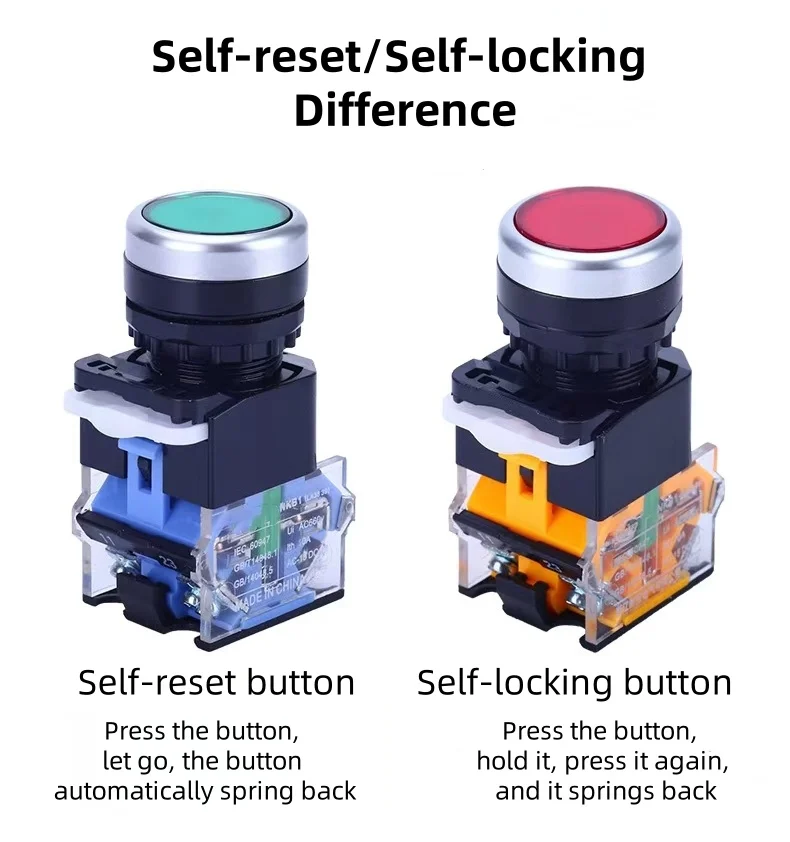

◆ Product features: Generally divided into self-reset button and self-locking button two.
Self-reset button： The button switch usually has an automatic reset function, which is to press the action and release the reset, which is the self-reset button. Used to switch on and off small current circuits. It generally does not directly operate the main circuit, but can be used in interconnected circuits.
Self-locking button: press the action, enter the working operation state, power up all the time, press again, stop working. If you do not press it, it will always be in the working power running state.
Rated Voltage: 220V: 220V
Size: 22 mm(0.87in)
Size: 22 mm: 22 mm(0.87in)
